Frame Assembly

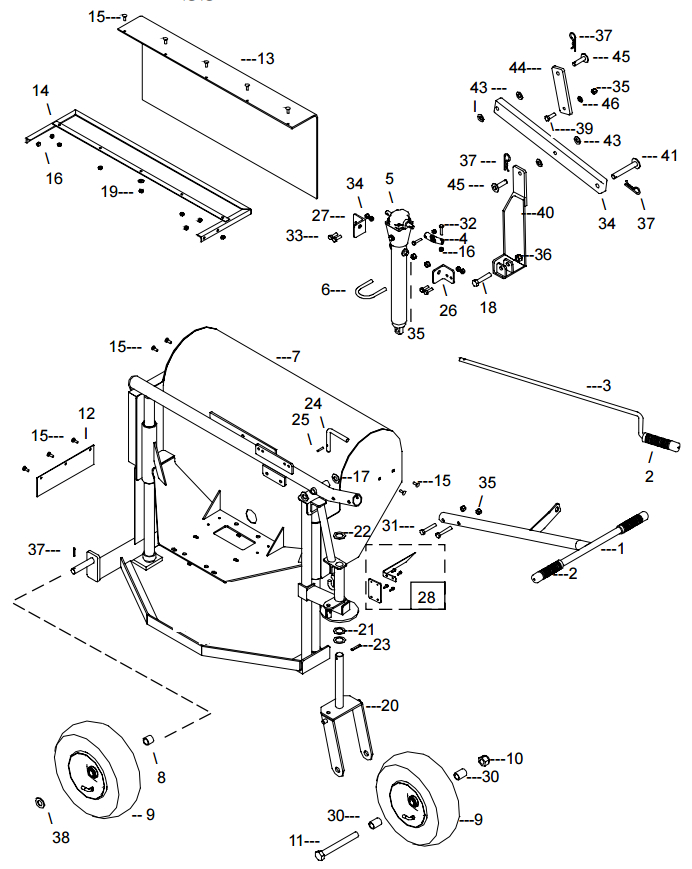

Below is a parts diagram for the frame assembly used in the Little Beaver KT1200B Kwik-Trench Earth Saw, followed by links to every OEM replacement part available.

Part Diagram Push Handle Assembly for KT200B, KT1200B, & KT2400B (w/ Grips) - Little Beaver KT286 Rubber Handle Grips, 1/2 Rubber Handle Grips, 1/2 Crank Handle Assembly for KT1200B and KT2400B - Little Beaver KT1264 Swivel, U-Joint - Little Beaver KT006 Actuator, 8 U-Bolt, Actuator, 3/8 Main Frame for KT1200B - Little Beaver KT1214 Bushing, Spacer 7/8 Wheel, 12 Wheel, 12 Bolt, Hex, 3/4 x 6-1/2, NC Gr. 5 - Little Beaver KT041 Skirt, Side, 32 Weldment, Skirt Frame 32 Carriage Bolt 1/4 Nut, Hex NC, 1/4 Carriage Bolt 1/4 Carriage Bolt 1/4 Carriage Bolt 1/4 Bolt, Hex, 1/2 Nut, KEP NC, 1/4 Swivel, Rear - Little Beaver KT250 Thrust Washer, 1/32 Actuator, 8 Roll Pin, 1/4 Lock Pin - Little Beaver KT265 Roll Pin, 3/16 Angle, Actuator Mounting, R.H. (Vertical) - Little Beaver KT278 Angle, Actuator Mounting, L.H. (Vertical) - Little Beaver KT279 Bar, Pointer - Little Beaver KT1261 Nut, Hex NC, 3/4 Bushing, Rear Wheel, 1-3/8 Bolt, Hex, 3/8 Bolt, Hex, 1/4 Bolt, Hex, 5/16 Nut, Hex, 3/8 Nut, Hex, 3/8 Nut, Hex, 1/2 Cotter Key, 1/8 Cotter Key, 1/8 Cotter Key, 1/8 Nut, Hex, 3/8 Cotter Key, 1/8 Flat Washer, 3/4 Bushing, Rear Wheel, 1-3/8 Bolt, Hex, 3/8 Link, Actuator - Little Beaver KT1250 Pin - Little Beaver KT1257 Flat Washer, 1/2 Flat Washer, 1/2 Bar, Height Adjustment Linkage - Little Beaver KT1256 Pin - Little Beaver KT1259 Flat Washer, 3/8 Pin - Little Beaver KT1259 Nut, Hex NC, 3/4
Little Beaver Thrust Washer, 3/32 - 36223

Thrust Washer, 3/32" - Little Beaver 36223 (36223)


$8.6535 each

Back to top
4
Swivel, U-Joint - Little Beaver KT006

Swivel, U-Joint - Little Beaver KT006 (KT006)


$62.7750 each

Back to top
7
Main Frame for KT1200B - Little Beaver KT1214

Main Frame for KT1200B - Little Beaver KT1214 (KT1214)


$1,765.80 each

Back to top
8
Bushing, Spacer 7/8" - Little Beaver 35175

Bushing, Spacer 7/8" - Little Beaver 35175 (35175)


$5.9535 each

Back to top
15
Carriage Bolt 1/4" x 3/4" - Little Beaver KT021
20
Swivel, Rear - Little Beaver KT250

Swivel, Rear - Little Beaver KT250 (KT250)


$86.3156 each

Back to top
21
Little Beaver Thrust Washer, 1/32

Thrust Washer, 1/32" - Little Beaver 36221 (36221)


$8.0865 each

Back to top
23
Roll Pin, 1/4" x 1-1/2" - Little Beaver KT040
24
Lock Pin - Little Beaver KT265

Lock Pin - Little Beaver KT265 (KT265)


$13.77 each

Back to top
25
Roll Pin, 3/16" x 1" - Little Beaver KT039

Roll Pin, 3/16" x 1" - Little Beaver KT039 (KT039)


$1.1644 each

Back to top
28
Bar, Pointer - Little Beaver KT1261

Bar, Pointer - Little Beaver KT1261 (KT1261)


$10.8338 each

Back to top
37
Cotter Key, 1/8" x 1" - Little Beaver 30163
38
Flat Washer, 3/4", SAE - Little Beaver 30164
40
Link, Actuator - Little Beaver KT1250

Link, Actuator - Little Beaver KT1250 (KT1250)


$57.2063 each

Back to top
41
Pin - Little Beaver KT1257

Pin - Little Beaver KT1257 (KT1257)


$6.0244 each

Back to top
45
Pin - Little Beaver KT1259

Pin - Little Beaver KT1259 (KT1259)


$4.4044 each

Back to top
