Frame Assembly

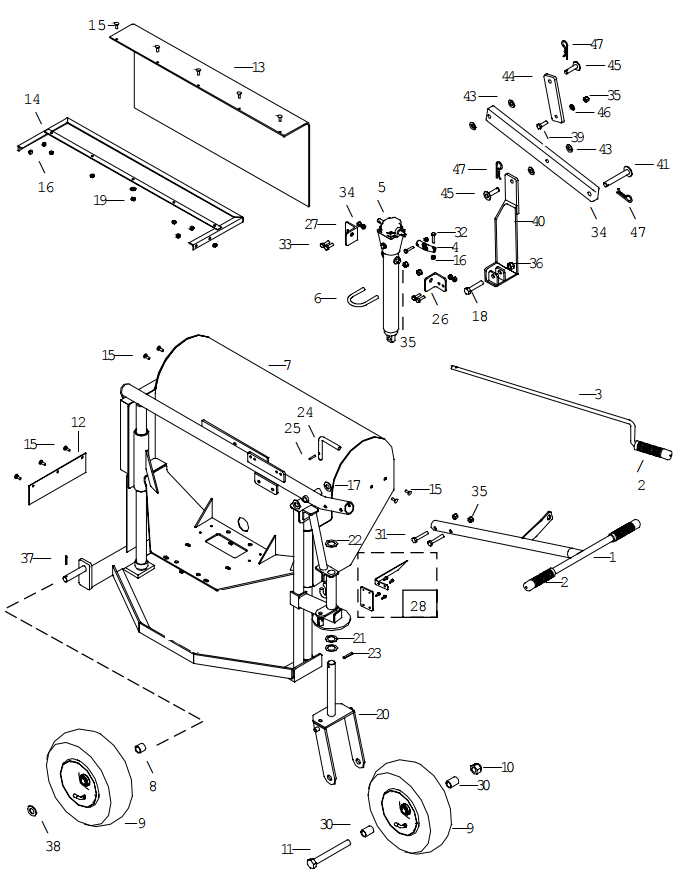

Below is a parts diagram for the frame assembly used in the Little Beaver KT2400B Kwik-Trench Earth Saw, followed by links to every OEM replacement part available.

Part Diagram Push Handle Assembly for KT200B, KT1200B, & KT2400B (w/ Grips) - Little Beaver KT286 Ribbed Rubber Handle Grips For Kwik-Trench Mini-Trenchers (3/4 Ribbed Rubber Handle Grips For Kwik-Trench Mini-Trenchers (3/4 Actuator, 8 U-Bolt, Actuator, 3/8 Frame, Main for KT2400B - Little Beaver KT2423 Wheel, 12 Wheel, 12 Nut, Hex NC, 3/4 Bolt, Hex, 3/4 x 6-1/2, NC Gr. 5 - Little Beaver KT041 Skirt, Front for KT2400B - Little Beaver KT2416 Skirt, Side, 33-3/4 Weldment, Skirt Frame 34 Nut, Hex NC, 1/4 Nut, Hex NC, 1/4 Nut, KEP NC, 1/4 Bushing, Rear Wheel, 1-3/8 Swivel, Rear - Little Beaver KT250 Pointer with Mounting Plate - Little Beaver KT2450 Roll Pin, 1/4 Cotter Key, 1/8 Lock Pin - Little Beaver KT265 Roll Pin, 3/16 Nut, Hex, 3/8 Angle, Actuator Mounting, R.H. (Vertical) - Little Beaver KT278 Nut, Hex, 3/8 Bolt, Hex, 3/8 Flat Washer, 3/4 Angle, Actuator Mounting, L.H. (Vertical) - Little Beaver KT279 Bolt, Hex, 5/16 Rocker Arm Actuator - Little Beaver KT2440 Nut, Hex, 1/2 Link, Actuator - Little Beaver KT1250 Bolt, Hex, 1/4 Pin - Little Beaver KT1259 Clip for Solid Top Auger Pins #21-07 - Little Beaver 9059-1 Flat Washer, 1/2 Bar, Height Adjustment Linkage - Little Beaver KT2441 Clip for Solid Top Auger Pins #21-07 - Little Beaver 9059-1 Pin - Little Beaver KT1259 Nut, Hex, 3/8 Flat Washer, 3/8 Pin - Little Beaver KT1257 Bolt, Hex, 3/8 Rocker Arm Actuator - Little Beaver KT2440 Clip for Solid Top Auger Pins #21-07 - Little Beaver 9059-1 Flat Washer, 1/2 Bushing, Rear Wheel, 1-3/8 Carriage Bolt 1/4 Carriage Bolt 1/4 Carriage Bolt 1/4 Carriage Bolt 1/4
1
Push Handle Assembly for KT200B, KT1200B, & KT2400B (w/ Grips) - Little Beaver KT286

Push Handle Assembly for KT200B, KT1200B, & KT2400B (w/ Grips) - Little Beaver KT286 (KT286)


$88.59 each

Back to top
2
Ribbed Rubber Handle Grips For Kwik-Trench Mini-Trenchers (3/4" ID For Use With 3/4" OD Tubing) - Little Beaver KT010

Ribbed Rubber Handle Grips For Kwik-Trench Mini-Trenchers (3/4" ID For Use With 3/4" OD Tubing) - Little Beaver KT010 (KT010)


$3.24 each

Back to top
5
Actuator, 8" Complete for KT1200B and KT2400B - Little Beaver KT045

Actuator, 8" Complete for KT1200B and KT2400B - Little Beaver KT045 (KT045)


$996.30 each

Back to top
6
U-Bolt, Actuator, 3/8" NC - Little Beaver KT009

U-Bolt, Actuator, 3/8" NC - Little Beaver KT009 (KT009)


$5.37 each

Back to top
7
Frame, Main for KT2400B - Little Beaver KT2423

Frame, Main for KT2400B - Little Beaver KT2423 (KT2423)


$2,295.34 each

Back to top
9
Wheel, 12" Pneumatic for KT1200B and KT2400B - Little Beaver KT046

Wheel, 12" Pneumatic for KT1200B and KT2400B - Little Beaver KT046 (KT046)


$69.86 each

Back to top
10
Nut, Hex NC, 3/4" Nylon Insert Lock - Little Beaver 9096

Nut, Hex NC, 3/4" Nylon Insert Lock - Little Beaver 9096 (9096)


$3.54 each

Back to top
11
Bolt, Hex, 3/4 x 6-1/2, NC Gr. 5 - Little Beaver KT041

Bolt, Hex, 3/4 x 6-1/2, NC Gr. 5 - Little Beaver KT041 (KT041)


$12.05 each

Back to top
12
Skirt, Front for KT2400B - Little Beaver KT2416

Skirt, Front for KT2400B - Little Beaver KT2416 (KT2416)


$17.01 each

Back to top
13
Skirt, Side, 33-3/4" for KT2400B - Little Beaver KT2422

Skirt, Side, 33-3/4" for KT2400B - Little Beaver KT2422 (KT2422)


$81.76 each

Back to top
14
Weldment, Skirt Frame 34" for KT2400B - Little Beaver KT2412

Weldment, Skirt Frame 34" for KT2400B - Little Beaver KT2412 (KT2412)


$73.15 each

Back to top
15
Carriage Bolt 1/4" x 3/4" - Little Beaver KT021

Carriage Bolt 1/4" x 3/4" - Little Beaver KT021 (KT021)


$0.37 each

Back to top
16
Nut, Hex NC, 1/4" Nylon Insert Lock - Little Beaver 30204

Nut, Hex NC, 1/4" Nylon Insert Lock - Little Beaver 30204 (LB-30204)


$0.41 each

Back to top
19
Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP

Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP (9026-KEP)


$0.26 each

Back to top
20
Swivel, Rear - Little Beaver KT250

Swivel, Rear - Little Beaver KT250 (KT250)


$92.14 each

Back to top
23
Roll Pin, 1/4" x 1-1/2" - Little Beaver KT040

Roll Pin, 1/4" x 1-1/2" - Little Beaver KT040 (KT040)


$1.42 each

Back to top
24
Lock Pin - Little Beaver KT265

Lock Pin - Little Beaver KT265 (KT265)


$14.68 each

Back to top
25
Roll Pin, 3/16" x 1" - Little Beaver KT039

Roll Pin, 3/16" x 1" - Little Beaver KT039 (KT039)


$1.27 each

Back to top
26
Angle, Actuator Mounting, R.H. (Vertical) - Little Beaver KT278

Angle, Actuator Mounting, R.H. (Vertical) - Little Beaver KT278 (KT278)


$10.63 each

Back to top
27
Angle, Actuator Mounting, L.H. (Vertical) - Little Beaver KT279

Angle, Actuator Mounting, L.H. (Vertical) - Little Beaver KT279 (KT279)


$10.63 each

Back to top
28
Pointer with Mounting Plate - Little Beaver KT2450

Pointer with Mounting Plate - Little Beaver KT2450 (KT2450)


$18.73 each

Back to top
30
Bushing, Rear Wheel, 1-3/8" long - Little Beaver KT285

Bushing, Rear Wheel, 1-3/8" long - Little Beaver KT285 (KT285)


$2.58 each

Back to top
31
Bolt, Hex, 3/8" x 2-1/4" NC Gr. 5 - Little Beaver KT022

Bolt, Hex, 3/8" x 2-1/4" NC Gr. 5 - Little Beaver KT022 (KT022)


$1.87 each

Back to top
32
Bolt, Hex, 1/4" x 1-1/4" NC Gr. 5 - Little Beaver 4018-1H

Bolt, Hex, 1/4" x 1-1/4" NC Gr. 5 - Little Beaver 4018-1H (4018-1H)


$0.56 each

Back to top
33
Bolt, Hex, 5/16" x 1" NC Gr. 5 - Little Beaver 9024-1

Bolt, Hex, 5/16" x 1" NC Gr. 5 - Little Beaver 9024-1 (9024-1)


$0.49 each

Back to top
34
Rocker Arm Actuator - Little Beaver KT2440

Rocker Arm Actuator - Little Beaver KT2440 (KT2440)


$87.58 each

Back to top
35
Nut, Hex, 3/8" NC, Nylon Lock - Little Beaver 30154

Nut, Hex, 3/8" NC, Nylon Lock - Little Beaver 30154 (30154)


$0.71 each

Back to top
36
Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158

Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158 (30158)


$1.11 each

Back to top
37
Cotter Key, 1/8" x 1" - Little Beaver 30163

Cotter Key, 1/8" x 1" - Little Beaver 30163 (30163)


$0.27 each

Back to top
38
Flat Washer, 3/4", SAE - Little Beaver 30164

Flat Washer, 3/4", SAE - Little Beaver 30164 (30164)


$1.16 each

Back to top
39
Bolt, Hex, 3/8" x 1-1/4" NC Gr. 5 - Little Beaver 9027-8

Bolt, Hex, 3/8" x 1-1/4" NC Gr. 5 - Little Beaver 9027-8 (9027-8)


$0.96 each

Back to top
40
Link, Actuator - Little Beaver KT1250

Link, Actuator - Little Beaver KT1250 (KT1250)


$61.00 each

Back to top
41
Pin - Little Beaver KT1257

Pin - Little Beaver KT1257 (KT1257)


$6.43 each

Back to top
43
Flat Washer, 1/2" Plated SAE - Little Beaver 30153

Flat Washer, 1/2" Plated SAE - Little Beaver 30153 (30153)


$0.47 each

Back to top
44
Bar, Height Adjustment Linkage - Little Beaver KT2441

Bar, Height Adjustment Linkage - Little Beaver KT2441 (KT2441)


$19.34 each

Back to top
45
Pin - Little Beaver KT1259

Pin - Little Beaver KT1259 (KT1259)


$4.71 each

Back to top
46
Flat Washer, 3/8" SAE and 5/16" Used with 5/16" Bolt and 3/8" Bolt - Little Beaver 3002-B

Flat Washer, 3/8" SAE and 5/16" Used with 5/16" Bolt and 3/8" Bolt - Little Beaver 3002-B (3002-B)


$0.31 each

Back to top
47
Clip for Solid Top Auger Pins #21-07 - Little Beaver 9059-1

Clip for Solid Top Auger Pins #21-07 - Little Beaver 9059-1 (9059-1)


$1.77 each

Back to top

Back to top
