HYD-PS13H Earth Drill (Honda GX390 Engine) Tank & Carrier Assembly

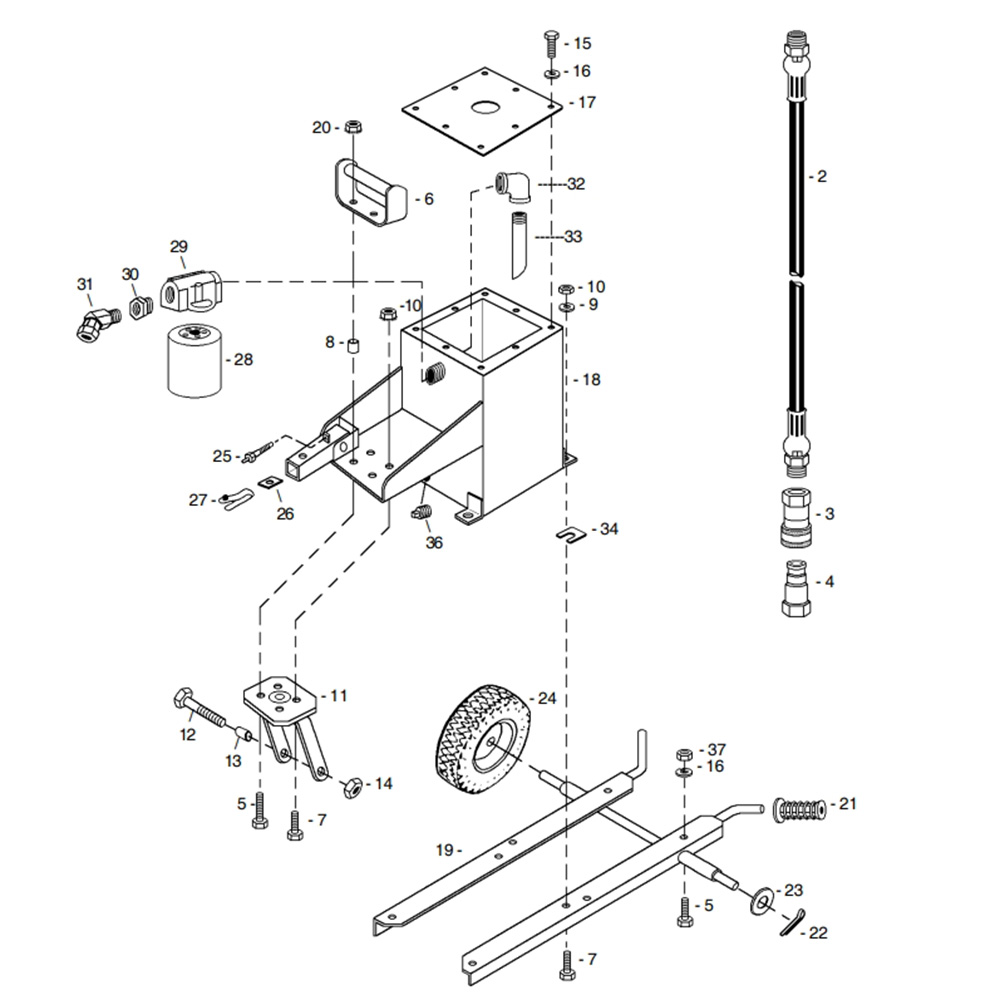

Below is a parts diagram for the Tank & Carrier Assembly used in the Little Beaver HYD-PS13H Earth Drill, followed by links to every OEM replacement part available.

Select All Remove All

Add to Cart

• 2


  Hose, Power Source, Pressure, 6' (30100)

  $83.53 each
  $83.53 each
• 2a


  Hose, Power Source, Return, 5'6" (30111)

  $76.19 each
  $76.19 each
• 3


  Quick Disconnect, 3/8" Female Flat Face (30250-H)

  $60.24 each
  $60.24 each
• 4


  Quick Disconnect, 3/8" Male Flat Face (30251-H)

  $36.05 each
  $36.05 each
• 5


  Bolt, 5/16 x1-3/4, Hex NC Gr 5Zinc Plated (3002-A)

  $1.01 each
  $1.01 each
• 6


  Handle, Front (30252)

  $45.66 each
  $45.66 each
• 7


  Bolt, Hex NC, 3/8" x 1" Plated GR 5 - Little Beaver 3012-2 (3012-2)

  $0.81 each
  $0.81 each
• 8


  Spacer, Hose Clamp, 1/2 X 3/4 (30198)

  $3.39 each
  $3.39 each
• 9


  Lock Washer, 3/8" Plated - Little Beaver 3012-3 (3012-3)

  $0.32 each
  $0.32 each
• 10


  Nut, KEP NC, 3/8 pltd. (Nut w/Lock Washer) (9027-KEP)

  $0.45 each
  $0.45 each
• 11


  Swivel Rig, Incl.Bolt, Nut & Spacers (30253-A)

  $153.65 each
  $153.65 each
• 12


  Bolt, 3/4 x 6, Hex NC Gr 5 Zinc Plated (30155-A)

  $18.63 each
  $18.63 each
• 13


  Spacer, Swivel Wheel, 3/4"ID x1-1/8" long (30351)

  $4.46 each
  $4.46 each
• 14


  Nut, Hex NC, 3/4 Nylon Insert Lock (9096)

  $3.70 each
  $3.70 each
• 15


  Bolt, 5/16 x 3/4, Hex NC Gr 5 Zinc Plated (3012-1T)

  $0.61 each
  $0.61 each
• 16


  Washer, Lock, 5/16 Heavy pltd.MUST BE EXTRA HEAVY (3002-C)

  $0.25 each
  $0.25 each
• 17


  Tank Top (30254)

  $59.23 each
  $59.23 each
• 18


  Tank, Dowty 2-bolt (30255)

  $608.01 each
  $608.01 each
• 19


  Carrier, Hydraulic (30256-H)

  $231.10 each
  $231.10 each
• 20


  Nut, KEP NC, 5/16 pltd. (Nut w/Lock Washer) (3002-KEP)

  $0.41 each
  $0.41 each
• 21


  Handle Grip, WX-7/8" ID (30257)

  $9.97 each
  $9.97 each
• 22


  Cotter Key, 1/8 X 1 (30163)

  $0.29 each
  $0.29 each
• 23


  Washer, Flat, 3/4, SAE (30164)

  $1.22 each
  $1.22 each
• 24


  Wheel, 12" Diameter, 3/4" Bore (30348)

  $76.44 each
  $76.44 each
• 25


  Kill Switch, TT Bracket, Engine End - Little Beaver 3007-9 (3007-9)

  $5.62 each
  $5.62 each
• 26


  Button Spacer Pad - Little Beaver 9084-1 (9084-1)

  $3.95 each
  $3.95 each
• 27


  Spring & Button (9058)

  $11.14 each
  $11.14 each
• 28


  Filter Element, replacement (30280)

  $25.31 each
  $25.31 each
• 29


  Base, Filter (30281)

  $47.89 each
  $47.89 each
• 30


  Bushing, 5406-12-8 3/4 male x 1/2 female (30282)

  $7.85 each
  $7.85 each
• 31


  Adapter, 45 degree 1503-08-06 (30283)

  $16.40 each
  $16.40 each
• 32


  Elbow, 3/4, Standard (30312)

  $8.25 each
  $8.25 each
• 33


  Diffuser, Hydraulic Tank (30317)

  $14.78 each
  $14.78 each
• 34


  Shim, 11 Gauge (.120) (30313-11)

  $1.27 each
  $1.27 each
• 34a


  Shim, 14 Gauge (.083) (30313-14)

  $1.27 each
  $1.27 each
• 34b


  Shim, 18 Gauge (.059) (30313-18)

  $1.22 each
  $1.22 each
• 35


  Shim Kit (30313-1)

  $8.96 each
  $8.96 each
• 36


  Magnetic Plug, 1/2" (30159)

  $3.65 each
  $3.65 each
• 37


  Nut, Hex NC, 5/16 Nylon InsertLock (30318)

  $0.49 each
  $0.49 each
