HYD-PS11H Earth Drill (Honda GX340 Engine) Pump, Filter, & Sight Gauge Assemblies

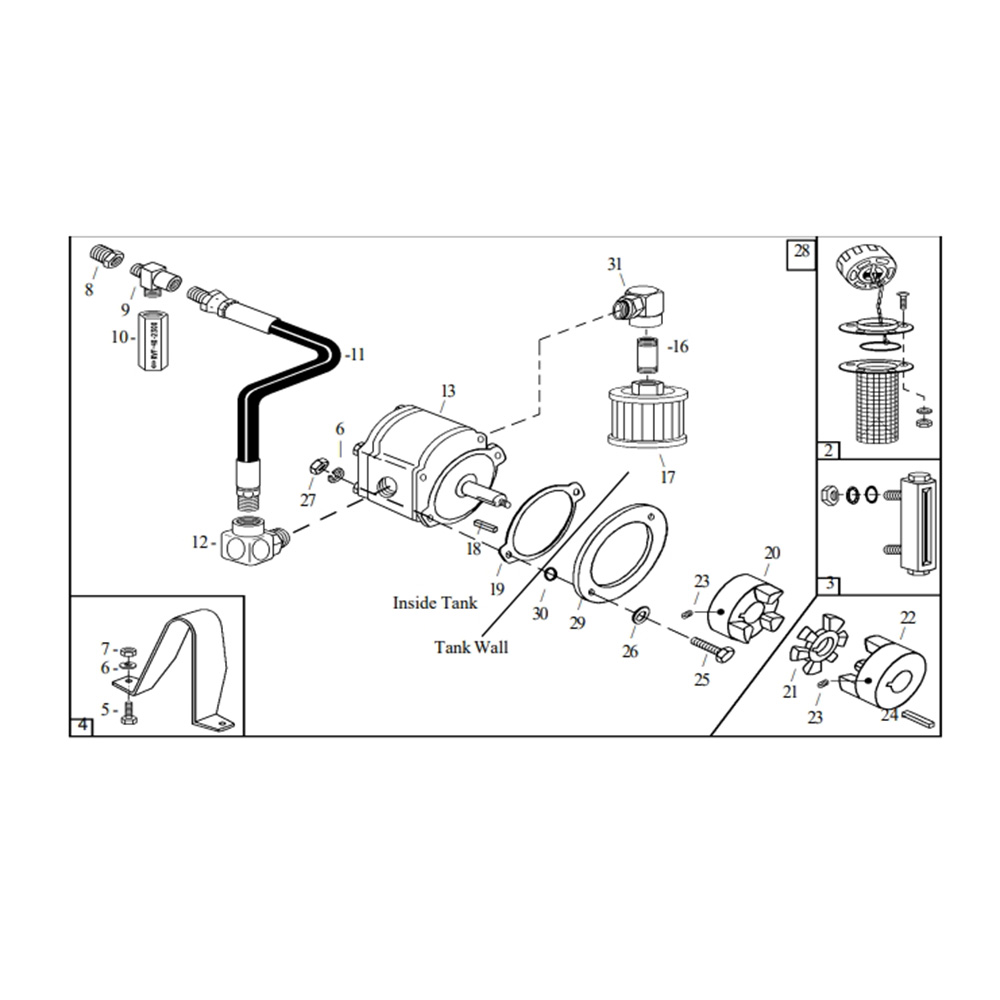

Below is a parts diagram for the Pump, Filter, & Sight Gauge Assemblies used in the Little Beaver HYD-PS11H Earth Drill, followed by links to every OEM replacement part available.

Select All Remove All

Add to Cart

• 2


  Cap and Strainer - Little Beaver 30260 (30260)

  $65.31 each
  $65.31 each
• 3


  Sight Gauge - Little Beaver 30262 (30262)

  $54.42 each
  $54.42 each
• 4


  Flexible Coupling Guard with Nuts and Bolts - Little Beaver 30172 (30172)

  $50.52 each
  $50.52 each
• 5


  Bolt, Hex NC, 3/8" x 1" Plated GR 5 - Little Beaver 3012-2 (3012-2)

  $0.81 each
  $0.81 each
• 6


  Lock Washer, 3/8" Plated - Little Beaver 3012-3 (3012-3)

  $0.32 each
  $0.32 each
• 8


  Bushing #5406-8-6 - Little Beaver 30315 (30315)

  $5.01 each
  $5.01 each
• 9


  Tee, 5603-6-6-6, 3/8 Male Pipe x 3/8 Male x 3/8 Female Pipe - Little Beaver 30316 (30316)

  $16.91 each
  $16.91 each
• 10


  Relief Valve, Dowty Pump, Metro 2700 PSI - Little Beaver 30270-R (30270-R)

  $221.23 each
  $221.23 each
• 11


  Hose, Pump to Tank, Dowty 11" - Little Beaver 30291 (30291)

  $38.27 each
  $38.27 each
• 12


  Fitting, 6805-10-NWO deg 5/8 O-Ring x Female Pipe - Little Beaver 30286 (30286)

  $26.12 each
  $26.12 each
• 13


  Little Beaver Pump - Dynamic Gpf2008Pc 8Cc .48 Cubic Inches 5/8" Str Keyed Shf (30263-DY)

  $336.66 each
  $336.66 each
• 16


  Standard Black Nipple, 3/4" x 2-1/2" - Little Beaver 30310 (30310)

  $6.73 each
  $6.73 each
• 17


  Suction Filter - Little Beaver 30266 (30266)

  $50.63 each
  $50.63 each
• 18


  Key, Woodruff #6, 5/32 x 5/8 - Little Beaver 4019 (4019)

  $1.22 each
  $1.22 each
• 19


  Dowty Pump Gasket, 2-Bolt Flange - Little Beaver 30292-2 (30292-2)

  $9.87 each
  $9.87 each
• 20


  Flexible Coupling, 5/8" Bore, Pump End - Little Beaver 30267-58 (30267-58)

  $52.65 each
  $52.65 each
• 21


  Flexible Coupling, Spider - Little Beaver 30269 (30269)

  $37.16 each
  $37.16 each
• 22


  Flexible Coupling, 1" Bore, Engine End - Little Beaver 30268 (30268)

  $52.65 each
  $52.65 each
• 23


  Socket Head Screw, Set, 5/16 x 5/16 NC - Little Beaver 30171 (30171)

  $0.47 each
  $0.47 each
• 24


  Key, Engine Shaft (1/4 x 1/4 x 1-1/8) - Little Beaver 4081 (4081)

  $1.11 each
  $1.11 each
• 25


  Bolt, Hex NC, 3/8" x 1-1/2" Plated Gr. 5 - Little Beaver 30295 (30295)

  $1.32 each
  $1.32 each
• 26


  Neoprene Washer, 3/8" - Little Beaver 30174 (30174)

  $1.42 each
  $1.42 each
• 27


  Nut, Hex, 3/8" NC, Nylon Lock - Little Beaver 30154 (30154)

  $0.76 each
  $0.76 each
• 28


  Dowty Pump Assembly, 2-Bolt Flange - Little Beaver 30263-D2A (30263-D2A)

  $895.05 each
  $895.05 each
• 29


  Ring, Tank - 2 Bolt SAE-A Pump Flange - Little Beaver 30293 (30293)

  $82.77 each
  $82.77 each
• 30


  Dowty Pump O-Ring #110 - Little Beaver 30294 (30294)

  $1.32 each
  $1.32 each
• 31


  90 Degree Adapter 6805-12-12-NWO - Little Beaver 30298 (30298)

  $32.60 each
  $32.60 each
