HYD-PS11H Earth Drill (Honda GX340 Engine) Anchor Handle

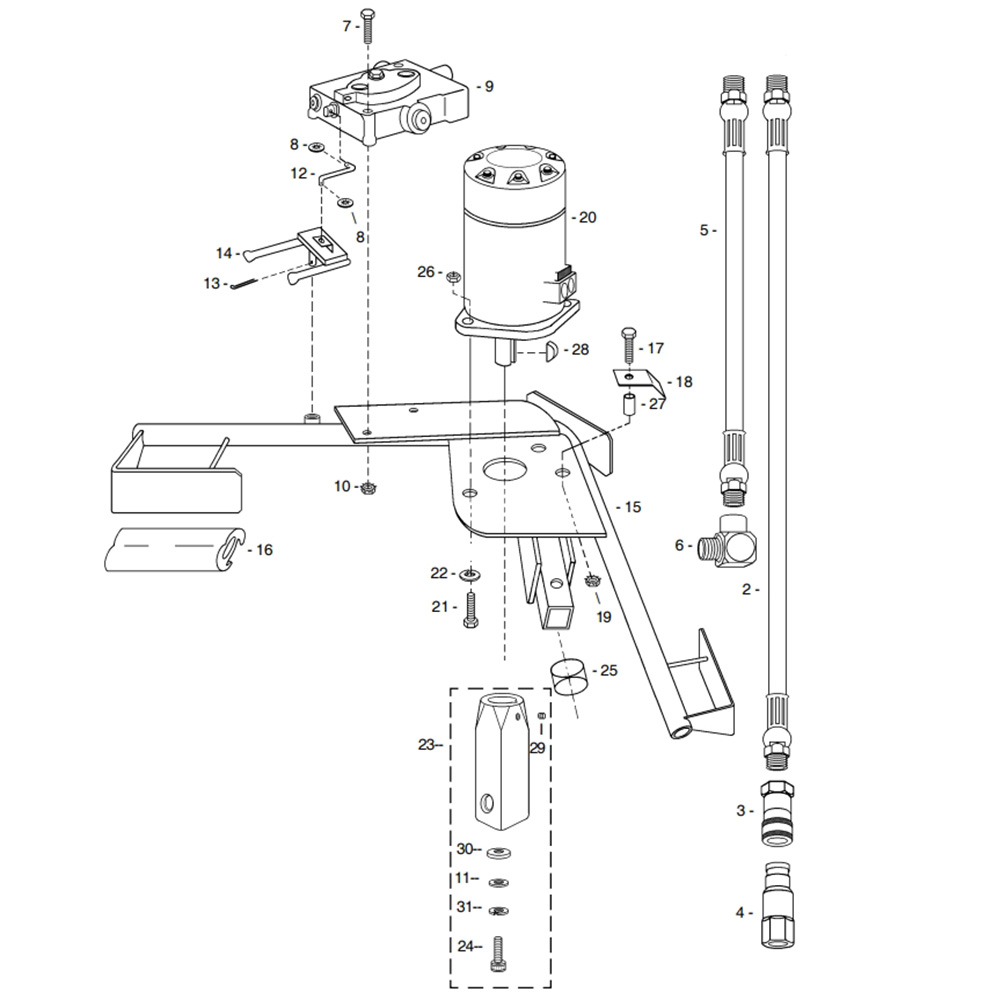

Below is a parts diagram for the Anchor Handle used in the Little Beaver HYD-PS11H Earth Drill, followed by links to every OEM replacement part available.

Select All Remove All

Add to Cart

• A


  Little Beaver Seal Kit, 60023 (H Series 007) - 30161 (30161)

  $75.18 each
  $75.18 each
• B


  Little Beaver Seal Kit, 60036 (H Series 005) - 30161-A (30161-A)

  $66.32 each
  $66.32 each
• D


  Little Beaver Seal Kit, Char-Lynn S-Series (-008, -009, -010) - 30162-D (30162-D)

  $109.35 each
  $109.35 each
• 2


  Hose, Valve to Power/Valve to Return for METRO Valve - Little Beaver 30102-A (30102-A)

  $52.40 each
  $52.40 each
• 3


  Quick Disconnect, 3/8" Female Flat Face - Little Beaver 30250-H (30250-H)

  $60.24 each
  $60.24 each
• 4


  Quick Disconnect, 3/8" Male Flat Face - Little Beaver 30251-H (30251-H)

  $36.05 each
  $36.05 each
• 5


  Little Beaver Valve to Motor Hose, 17-1/2" for Anchor and 1-Man Handles - 30115-A (30115-A)

  $45.66 each
  $45.66 each
• 5a


  Little Beaver Hose - Valve To Motor - 17-1/2" O-Ring Mtr Conn To Jic Hose (30120-A)

  $46.27 each
  $46.27 each
• 6


  Little Beaver Fitting - 06U-608 630Vsae - 37 Deg (Jic) Fem Swivel (30296)

  $12.05 each
  $12.05 each
• 6a


  90 Degree Street Elbow Adapter 5502-8-6 - Little Beaver 30287 (30287)

  $16.10 each
  $16.10 each
• 7


  Cap Screw 1/4" x 2" Plated GR 5 - Little Beaver 5076 (5076)

  $1.01 each
  $1.01 each
• 8


  Pushnut Locking Washer - Little Beaver 30188 (30188)

  $0.40 each
  $0.40 each
• 9a


  Little Beaver Metro Valve Seal Kit #830-00-001 - 30275-2 (30275-2)

  $16.50 each
  $16.50 each
• 9


  Metro Valve #D10M2 with Relief at 2700 PSI - Little Beaver 30275 (30275)

  $349.31 each
  $349.31 each
• 10


  Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP (9026-KEP)

  $0.29 each
  $0.29 each
• 11


  Standard Flat Washer, 1/4" - Little Beaver 10304 (10304)

  $0.26 each
  $0.26 each
• 12


  Throttle Linkage, 3/16" - Little Beaver 30178-A (30178-A)

  $10.07 each
  $10.07 each
• 13


  Cotter Key 3/32" x 5/8" - Little Beaver 30179 (30179)

  $0.29 each
  $0.29 each
• 14


  Throttle Lever - Little Beaver 30180-A (30180-A)

  $31.49 each
  $31.49 each
• 15


  Anchor Handle ONLY, Plate for 2-Bolt Flange - Little Beaver 30276-A (30276-A)

  $258.19 each
  $258.19 each
• 16


  Leg Pad - Little Beaver 9034 (9034)

  $19.64 each
  $19.64 each
• 17


  Bolt, Hex NC, 5/16" x 2" Plated GR5 - Little Beaver 3010-9 (3010-9)

  $0.71 each
  $0.71 each
• 18


  Hose Clamp - Little Beaver 30183 (30183)

  $10.83 each
  $10.83 each
• 19


  Nut, KEP NC, 5/16" Plated (Nut with Lock Washer) - Little Beaver 3002-KEP (3002-KEP)

  $0.41 each
  $0.41 each
• 20


  Motor, Char-Lynn #101-1040, 60 rpm, 24 cubic inch 2-Bolt Flange - Little Beaver 30278 (30278)

  $774.56 each
  $774.56 each
• 23


  Little Beaver Adaptor with Hardware - Keyed Shaft to Auger w/ Button - 30272 (30272)

  $97.96 each
  $97.96 each
• 24


  Socket Head Screw, NC, 1/4" x 1", Nylok Plug - Little Beaver 30010 (30010)

  $5.11 each
  $5.11 each
• 25


  Button Shield - Little Beaver 9058-1 (9058-1)

  $2.58 each
  $2.58 each
• 26


  Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158 (30158)

  $1.16 each
  $1.16 each
• 27


  Hose Clamp Spacer 5/16" x 5/8" - Little Beaver 30198 (30198)

  $3.39 each
  $3.39 each
• 28


  Little Beaver Replacement Woodruff Key (1/4" x 1" #808) - Little Beaver 30182 (30182)

  $3.75 each
  $3.75 each
• 29


  1/4" x 1/4" NC Screw Socket Head - Little Beaver 9021 (9021)

  $0.34 each
  $0.34 each
• 30


  Washer, Williams, 3/8" - Little Beaver 10520 (10520)

  $2.03 each
  $2.03 each
• 31


  Washer, Split Lock, 1/4" - Little Beaver 9025 (9025)

  $0.15 each
  $0.15 each
