Tank & Carrier

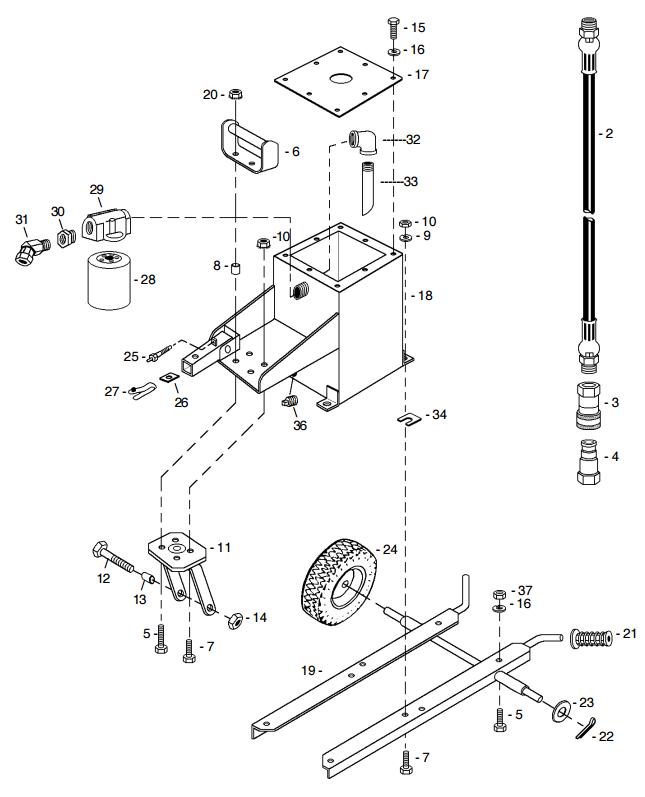

It shouldn't be hard to find exactly the right replacement part you need to get your Little Beaver Hydraulic Earth Drill working perfectly again. Below you'll find a parts diagram for the tank and carrier assembly, followed by links to every OEM replacement part available - all at the lowest price possible.

Select All Remove All

Add to Cart

• 2


  Return Hose, 68" Max Overall Length - Little Beaver 30111 (30111)

  $76.19 each
  $76.19 each
• 3


  Quick Disconnect, 3/8" Female Flat Face - Little Beaver 30250-H (30250-H)

  $60.24 each
  $60.24 each
• 4


  Quick Disconnect, 3/8" Male Flat Face - Little Beaver 30251-H (30251-H)

  $36.05 each
  $36.05 each
• 5


  Bolt, Hex NC, 5/16" x 1-3/4" Plated GR 5 - Little Beaver 3002-A (3002-A)

  $1.01 each
  $1.01 each
• 6


  Front Handle - Little Beaver 30252 (30252)

  $45.66 each
  $45.66 each
• 7


  Bolt, Hex NC, 3/8" x 1" Plated GR 5 - Little Beaver 3012-2 (3012-2)

  $0.81 each
  $0.81 each
• 8


  Hose Clamp Spacer 5/16" x 5/8" - Little Beaver 30198 (30198)

  $3.39 each
  $3.39 each
• 9


  Lock Washer, 3/8" Plated - Little Beaver 3012-3 (3012-3)

  $0.32 each
  $0.32 each
• 10


  Nut, KEP NC, 3/8 Plated (Nut with Lock Washer) - Little Beaver 9027-KEP (9027-KEP)

  $0.44 each
  $0.44 each
• 11


  Swivel Wheel Mount (Includes Bolt, Nut and Spacers) - Little Beaver 30253-A (30253-A)

  $153.65 each
  $153.65 each
• 12


  3/4" x 6" Hex Screw - Little Beaver 30155-A (30155-A)

  $18.63 each
  $18.63 each
• 13


  Swivel Wheel Spacer, 3/4" ID x 1-1/8" Long - 30351 (30351)

  $4.46 each
  $4.46 each
• 14


  Nut, Hex NC, 3/4" Nylon Insert Lock - Little Beaver 9096 (9096)

  $3.70 each
  $3.70 each
• 15


  Screw, Hex NC, 5/16" x 3/4" Plated GR 5 - Little Beaver 3012-1T (3012-1T)

  $0.61 each
  $0.61 each
• 16


  Lock Washer, 5/16" Heavy Plated - Little Beaver 3002-C (3002-C)

  $0.26 each
  $0.26 each
• 17


  Tank Top - Little Beaver 30254 (30254)

  $59.23 each
  $59.23 each
• 18


  Dowty 2-Bolt Tank - Little Beaver 30255 (30255)

  $608.01 each
  $608.01 each
• 19


  Hydraulic Carrier - Little Beaver 30256-H (30256-H)

  $231.10 each
  $231.10 each
• 20


  Nut, KEP NC, 5/16" Plated (Nut with Lock Washer) - Little Beaver 3002-KEP (3002-KEP)

  $0.41 each
  $0.41 each
• 21


  Handle Grip, WX-7/8" ID - Little Beaver 30257 (30257)

  $9.97 each
  $9.97 each
• 22


  Cotter Key, 1/8" x 1" - Little Beaver 30163 (30163)

  $0.29 each
  $0.29 each
• 23


  Flat Washer, 3/4", SAE - Little Beaver 30164 (30164)

  $1.22 each
  $1.22 each
• 24


  12" Diameter Wheel, 3/4" Bore - Little Beaver 30348 (30348)

  $76.44 each
  $76.44 each
• 25


  Kill Switch, TT Bracket, Engine End - Little Beaver 3007-9 (3007-9)

  $5.62 each
  $5.62 each
• 26


  Button Spacer Pad - Little Beaver 9084-1 (9084-1)

  $3.95 each
  $3.95 each
• 27


  Spring and Button - Little Beaver 9058 (9058)

  $11.14 each
  $11.14 each
• 28


  Replacement Filter Element - Little Beaver 30280 (30280)

  $25.31 each
  $25.31 each
• 29


  Filter Base - Little Beaver 30281 (30281)

  $47.89 each
  $47.89 each
• 30


  Bushing, 5406-12-8 - 3/4 Male x 1/2 Female - Little Beaver 30282 (30282)

  $7.85 each
  $7.85 each
• 31


  45 Degree Adapter 1503-08-06 - Little Beaver 30283 (30283)

  $16.40 each
  $16.40 each
• 32


  Standard Elbow, 3/4" - Little Beaver 30312 (30312)

  $8.25 each
  $8.25 each
• 33


  Hydraulic Tank Diffuser - Little Beaver 30317 (30317)

  $14.78 each
  $14.78 each
• 34


  Shim, 11 Gauge (.120") - Little Beaver 30313-11 (30313-11)

  $1.27 each
  $1.27 each
• 35


  Shim Kit (2 shims of each size, 8 total) - Little Beaver 30313-1 (30313-1)

  $8.96 each
  $8.96 each
• 36


  Magnetic Plug, 1/2" - Little Beaver 30159 (30159)

  $3.65 each
  $3.65 each
• 37


  Nut, Hex NC, 5/16" Nylon Insert Lock - Little Beaver 30318 (30318)

  $0.49 each
  $0.49 each
