Spine & Valve Assembly

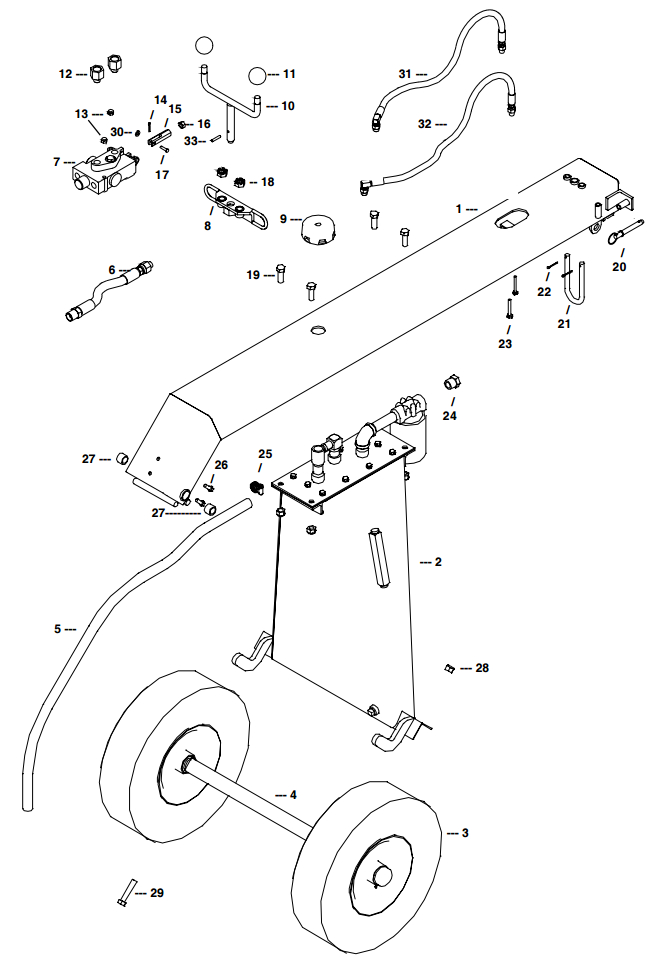

This page features a parts diagram of the spine & valve assembly for Little Beaver towable hydraulic earth drills, followed by links to each of these official OEM replacement parts. This part finder was built because we think it should be as easy as possible to find exactly the right part you need, all at a price that can't be beat.

Select All Remove All

Add to Cart

• 1


  Little Beaver Spine - 37022 (37022)

  $1,241.33 each $1,241.33 each
• 3


  Little Beaver Wheel Assembly (Includes Bearing, Seal, Cap) - 37004 (37004)

  $200.22 each $200.22 each
• 4


  Little Beaver Axle Assembly w/ Wheels - 37000 (37000)

  $552.83 each $552.83 each
• 5


  Little Beaver Tank to Pump Hose - 37162 (37162)

  $46.58 each $46.58 each
• 6


  Little Beaver Hose Assembly - Valve to Tank - 37157 (37157)

  $30.48 each $30.48 each
• 7


  Little Beaver Metro Valve Seal Kit #830-00-001 - 30275-2 (30275-2)

  $18.23 each $18.23 each
• 8


  Little Beaver Angle - Neck Lock - 37082 (37082)

  $62.27 each $62.27 each
• 9


  Little Beaver Filler Breather Cap - 37165 (37165)

  $37.67 each $37.67 each
• 10


  Little Beaver Neck Lock Screw - 37085 (37085)

  $52.40 each $52.40 each
• 11


  Little Beaver Knob - Handle - 37088 (37088)

  $13.57 each $13.57 each
• 12


  Little Beaver Adapter - 9/16 x 3/4 SAE O-Ring 6410-6-8-0 - 37155 (37155)

  $11.75 each $11.75 each
• 13


  Little Beaver Nut - Hex NC - 1/4" Nylon Insert Lock - 30204 (LB-30204)

  $0.41 each $0.41 each
• 14


  Little Beaver Pin - Clevis 3/16 x 3/4 Plated - 37171 (37171)

  $2.38 each $2.38 each
• 15


  Little Beaver Clevis - 9/16 Hex with 5/16-18 Threaded ID - 37138 (replaced KT033) (37138)

  $13.57 each $13.57 each
• 16


  Little Beaver Zinc Plated Nut - 5/16-18 - 3002-D (3002-D)

  $0.25 each $0.25 each
• 17


  Little Beaver Cotter Key 3/32" x 5/8" - 30179 (30179)

  $0.29 each $0.29 each
• 18


  Little Beaver Nut - NC Slotted 1/2 - 37134 (37134)

  $2.99 each $2.99 each
• 19


  Little Beaver Bolt - Hex NC - 1/2 x 1-1/2 Plated GR 5 - 30408 (30408)

  $2.84 each $2.84 each
• 20


  Little Beaver Pin - Ball Lock with Ring - 3/8 - 37181 (37181)

  $9.32 each $9.32 each
• 21


  Little Beaver U-Bolt - 1/2 x 4-1/4 Legs - 37133 (37133)

  $27.64 each $27.64 each
• 22


  Little Beaver Cotter Key - 1/8" x 1" - 30163 (30163)

  $0.29 each $0.29 each
• 23


  Little Beaver Cap Screw 1/4" x 2" Plated GR 5 - 5076 (5076)

  $1.01 each $1.01 each
• 24


  Little Beaver Bushing - 5406-12-8 - 3/4 Male x 1/2 Female - 30282 (30282)

  $7.85 each $7.85 each
• 25


  Little Beaver Hose Clamp - #5712 - 30270-3 (30270-3)

  $6.18 each $6.18 each
• 26


  Little Beaver Bolt - Hex - 5/16" x 1" NC Gr. 5 - 9024-1 (9024-1)

  $0.51 each $0.51 each
• 27


  Little Beaver Bushing - 1" x 23/32 - 37123 (37123)

  $3.29 each $3.29 each
• 28


  Little Beaver Nut - Hex - 1/2" NC - Nylon Lock - 30158 (30158)

  $1.16 each $1.16 each
• 30


  Little Beaver Flat Washer - #10 Zinc Plated - 4033-1 (4033-1)

  $0.25 each $0.25 each
• 31


  Little Beaver 41" 1/2" OAL Left Valve to Motor Hose Assembly - JIC - 37198 (37198)

  $71.63 each $71.63 each
• 32


  Little Beaver 39 1/2" OAL Right Valve to Motor Hose Assembly - JIC - 37197 (37197)

  $71.63 each $71.63 each
• 33


  Little Beaver 3/16" x 1" Roll Pin - KT039 (KT039)

  $1.32 each $1.32 each
