Handle & Rock Shaft Linkage

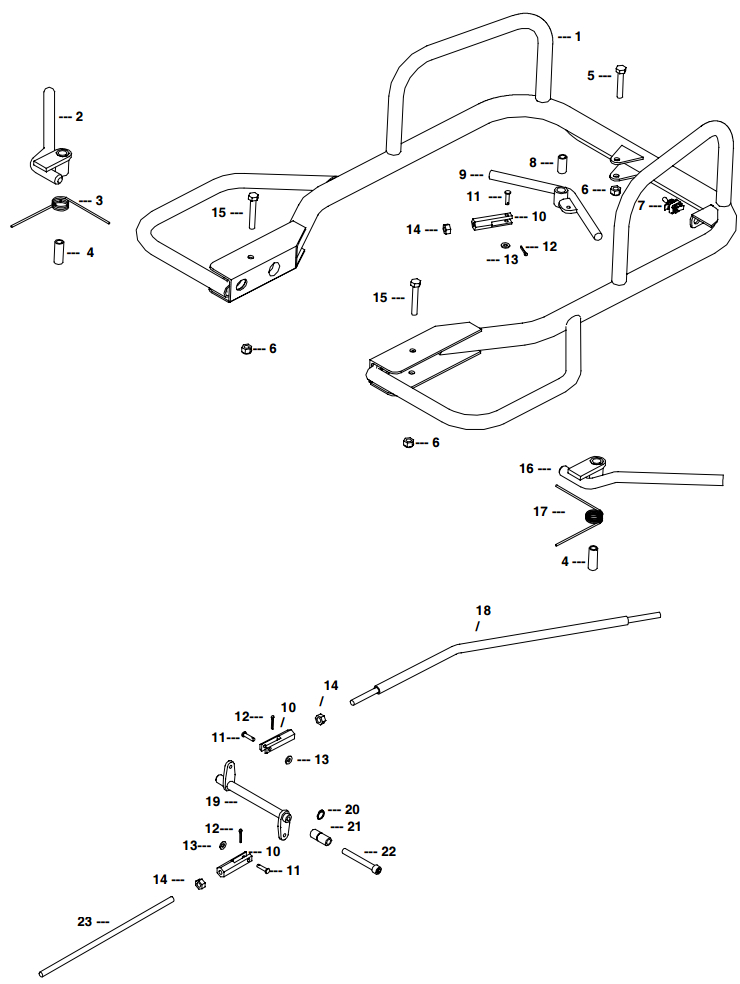

Below is a parts diagram for the handle and rock shaft linkage used in Little Beavers towable hydraulic earth drills, followed by links to every official OEM replacement part available.

Part Diagram Handle Weldment - Little Beaver 37061 Lock Handle, LH - Little Beaver 37101 Torsion Left Hand Spring - Little Beaver 37144 Bushing, 1/2 OD x 1-3/8 Long - Little Beaver 37140 Bolt, Hex NC, 5/16 Nut, Hex NC, 5/16 Nut, Hex NC, 5/16 Nut, Hex NC, 5/16 Bushing, 1/2 OD x 1-3/8 Long - Little Beaver 37140 Toggle Kill Switch Assembly Handle (Includes Nut and On-Off) - Little Beaver 10470 Bushing, 1/2 OD x 1 Long - Little Beaver 37137 Valve Lever - Little Beaver 37093 Clevis, 9/16 Hex with 5/16-18 Threaded ID - Little Beaver 37138 (replaced Little Beaver KT033) Pin, Clevis 3/16 x 3/4 Plated - Little Beaver 37171 Cotter Key 3/32 Flat Washer, #10 Zinc Plated - Little Beaver 4033-1 Zinc Plated Nut, 5/16-18 - Little Beaver 3002-D Bolt, Hex NC, 5/16 Bolt, Hex NC, 5/16 Clevis, 9/16 Hex with 5/16-18 Threaded ID - Little Beaver 37138 (replaced Little Beaver KT033) Clevis, 9/16 Hex with 5/16-18 Threaded ID - Little Beaver 37138 (replaced Little Beaver KT033) Pin, Clevis 3/16 x 3/4 Plated - Little Beaver 37171 Cotter Key 3/32 Cotter Key 3/32 Pin, Clevis 3/16 x 3/4 Plated - Little Beaver 37171 Flat Washer, #10 Zinc Plated - Little Beaver 4033-1 Zinc Plated Nut, 5/16-18 - Little Beaver 3002-D Zinc Plated Nut, 5/16-18 - Little Beaver 3002-D Flat Washer, #10 Zinc Plated - Little Beaver 4033-1 Link, Lever - Little Beaver 37097 Torsion Right Hand Spring - Little Beaver 37143 Rockshaft - Little Beaver 37089 Retaining Ring, SH-50 - Little Beaver 37135 Bushing, Rockshaft End - Little Beaver 37092 Socket Head Screw, 5/16 x 2-1/4 - Little Beaver 37136 Link, Valve - Little Beaver 37146 Lock Handle, Right - Little Beaver 37100
1
Handle Weldment - Little Beaver 37061

Handle Weldment - Little Beaver 37061 (37061)


$343.74 each

Back to top
2
Lock Handle, LH - Little Beaver 37101

Lock Handle, LH - Little Beaver 37101 (37101)


$26.53 each

Back to top
3
Torsion Left Hand Spring - Little Beaver 37144

Torsion Left Hand Spring - Little Beaver 37144 (37144)


$7.70 each

Back to top
4
Bushing, 1/2 OD x 1-3/8 Long - Little Beaver 37140

Bushing, 1/2 OD x 1-3/8 Long - Little Beaver 37140 (37140)


$4.25 each

Back to top
5
Bolt, Hex NC, 5/16" x 1-3/4" Plated GR 5 - Little Beaver 3002-A

Bolt, Hex NC, 5/16" x 1-3/4" Plated GR 5 - Little Beaver 3002-A (3002-A)


$0.96 each

Back to top
6
Nut, Hex NC, 5/16" Nylon Insert Lock - Little Beaver 30318

Nut, Hex NC, 5/16" Nylon Insert Lock - Little Beaver 30318 (30318)


$0.47 each

Back to top
7
Toggle Kill Switch Assembly Handle (Includes Nut and On-Off) - Little Beaver 10470

Toggle Kill Switch Assembly Handle (Includes Nut and On-Off) - Little Beaver 10470 (10470)


$8.15 each

Back to top
8
Bushing, 1/2 OD x 1 Long - Little Beaver 37137

Bushing, 1/2 OD x 1 Long - Little Beaver 37137 (37137)


$3.65 each

Back to top
9
Valve Lever - Little Beaver 37093

Valve Lever - Little Beaver 37093 (37093)


$24.10 each

Back to top
10
Clevis, 9/16 Hex with 5/16-18 Threaded ID - Little Beaver 37138 (replaced Little Beaver KT033)

Clevis, 9/16 Hex with 5/16-18 Threaded ID - Little Beaver 37138 (replaced Little Beaver KT033) (37138)


$12.15 each

Back to top
11
Pin, Clevis 3/16 x 3/4 Plated - Little Beaver 37171

Pin, Clevis 3/16 x 3/4 Plated - Little Beaver 37171 (37171)


$2.28 each

Back to top
12
Cotter Key 3/32" x 5/8" - Little Beaver 30179

Cotter Key 3/32" x 5/8" - Little Beaver 30179 (30179)


$0.27 each

Back to top
13
Flat Washer, #10 Zinc Plated - Little Beaver 4033-1

Flat Washer, #10 Zinc Plated - Little Beaver 4033-1 (4033-1)


$0.24 each

Back to top
14
Zinc Plated Nut, 5/16-18 - Little Beaver 3002-D

Zinc Plated Nut, 5/16-18 - Little Beaver 3002-D (3002-D)


$0.24 each

Back to top
15
Bolt, Hex NC, 5/16" x 2" Plated GR5 - Little Beaver 3010-9

Bolt, Hex NC, 5/16" x 2" Plated GR5 - Little Beaver 3010-9 (3010-9)


$0.66 each

Back to top
16
Lock Handle, Right - Little Beaver 37100

Lock Handle, Right - Little Beaver 37100 (37100)


$26.53 each

Back to top
17
Torsion Right Hand Spring - Little Beaver 37143

Torsion Right Hand Spring - Little Beaver 37143 (37143)


$7.70 each

Back to top
18
Link, Lever - Little Beaver 37097

Link, Lever - Little Beaver 37097 (37097)


$35.44 each

Back to top
19
Rockshaft - Little Beaver 37089

Rockshaft - Little Beaver 37089 (37089)


$49.61 each

Back to top
20
Retaining Ring, SH-50 - Little Beaver 37135

Retaining Ring, SH-50 - Little Beaver 37135 (37135)


$0.32 each

Back to top
21
Bushing, Rockshaft End - Little Beaver 37092

Bushing, Rockshaft End - Little Beaver 37092 (37092)


$7.54 each

Back to top
22
Socket Head Screw, 5/16 x 2-1/4 - Little Beaver 37136

Socket Head Screw, 5/16 x 2-1/4 - Little Beaver 37136 (37136)


$1.16 each

Back to top
23
Link, Valve - Little Beaver 37146

Link, Valve - Little Beaver 37146 (37146)


$7.34 each

Back to top
