Flexible Shaft Assembly

Below you'll find a part diagram for Little Beaver mechanical earth drills flexible shaft, followed by links to the complete assembly and each of the replacement parts.

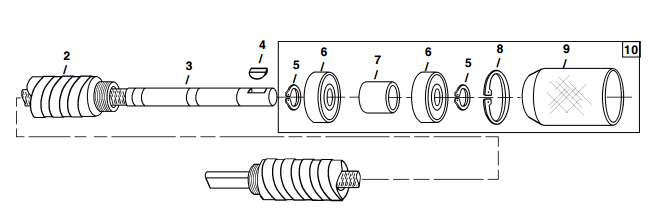

Part Diagram Flexible Shaft Housing, Elliot - Little Beaver 3124-1 Flexible Shaft Core, .625 OD with Key Spacer and 2 Retaining Rings - Little Beaver 3224-2 Key, Woodruff #6, 5/32 x 5/8 - Little Beaver 4019 Lock Ring, Inner, End Assembly - Little Beaver 3024-16 End Bearing Assembly - Little Beaver 3024-13 End Assembly Spacer, Improved Flex Shaft - Little Beaver 3124-19 End Bearing Assembly - Little Beaver 3024-13 Lock Ring, Inner, End Assembly - Little Beaver 3024-16 Knurled Housing, End Assembly - Little Beaver 3024-17 End Assembly Kit, Flexible Shaft - Little Beaver 3124-4
2
Flexible Shaft Housing, Elliot - Little Beaver 3124-1

Flexible Shaft Housing, Elliot - Little Beaver 3124-1 (3124-1)


$358.43 each

Back to top
3
Flexible Shaft Core, .625 OD with Key Spacer and 2 Retaining Rings - Little Beaver 3224-2

Flexible Shaft Core, .625 OD with Key Spacer and 2 Retaining Rings - Little Beaver 3224-2 (3224-2)


$176.18 each

Back to top
4
Key, Woodruff #6, 5/32 x 5/8 - Little Beaver 4019

Key, Woodruff #6, 5/32 x 5/8 - Little Beaver 4019 (4019)


$1.16 each

Back to top
5
Lock Ring, Inner, End Assembly - Little Beaver 3024-16

Lock Ring, Inner, End Assembly - Little Beaver 3024-16 (3024-16)


$2.68 each

Back to top
6
End Bearing Assembly - Little Beaver 3024-13

End Bearing Assembly - Little Beaver 3024-13 (3024-13)


$18.73 each

Back to top
7
End Assembly Spacer, Improved Flex Shaft - Little Beaver 3124-19

End Assembly Spacer, Improved Flex Shaft - Little Beaver 3124-19 (3124-19)


$9.47 each

Back to top
9
Knurled Housing, End Assembly - Little Beaver 3024-17

Knurled Housing, End Assembly - Little Beaver 3024-17 (3024-17)


$65.56 each

Back to top
10
End Assembly Kit, Flexible Shaft - Little Beaver 3124-4

End Assembly Kit, Flexible Shaft - Little Beaver 3124-4 (3124-4)


$115.43 each

Back to top

Back to top
