Frame Assembly

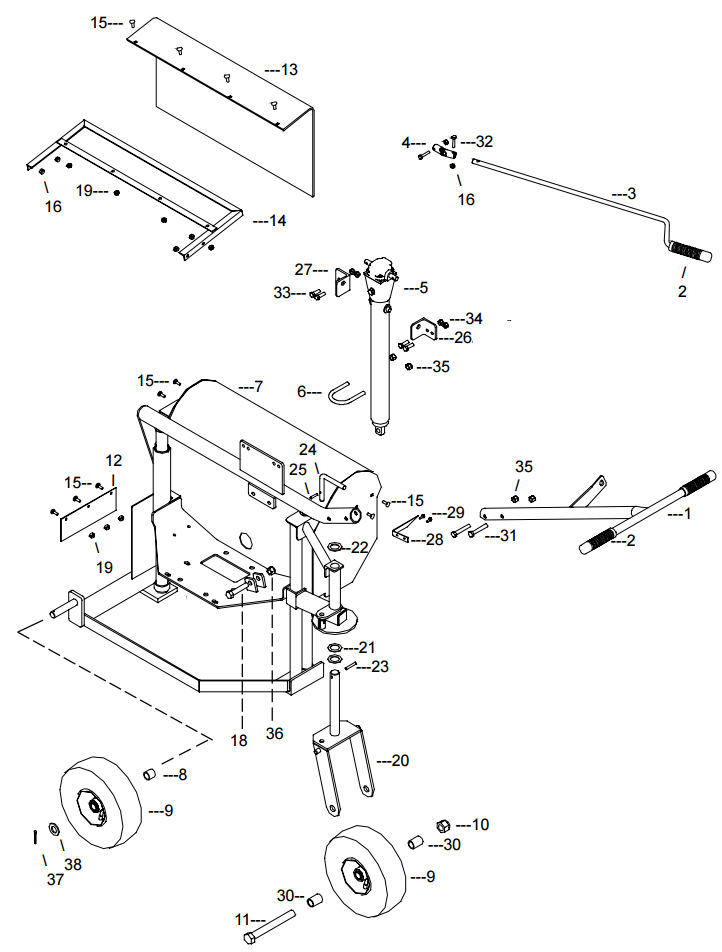

Below is a parts diagram for the frame assembly used in the Little Beaver KT200B Kwik-Trench Earth Saw, followed by links to every OEM replacement part available.

Part Diagram Push Handle Assembly for KT200B, KT1200B, & KT2400B (w/ Grips) - Little Beaver KT286 Rubber Handle Grips, 1/2 Rubber Handle Grips, 1/2 Crank Assembly, KT200B (w/ Grip) - Little Beaver KT291 Actuator, 12 U-Bolt, Actuator, 3/8 Main Frame, KT200B - Little Beaver KT235 10 Nut, Hex NC, 3/4 10 Bolt, Hex, 3/4 x 6-1/2, NC Gr. 5 - Little Beaver KT041 Skirt, Front for KT200B - Little Beaver KT234 Skirt, Side 24 Weldment, Skirt Frame, 24 Carriage Bolt 1/4 Nut, Hex NC, 1/4 Carriage Bolt 1/4 Carriage Bolt 1/4 Carriage Bolt 1/4 Nut, Hex NC, 1/4 Nut, KEP NC, 1/4 Nut, KEP NC, 1/4 Swivel, Rear - Little Beaver KT250 Roll Pin, 3/16 Lock Pin - Little Beaver KT265 Roll Pin, 1/4 Angle, Actuator Mounting, R.H. (Vertical) - Little Beaver KT278 Angle, Actuator Mounting, L.H. (Vertical) - Little Beaver KT279 Bar, Pointer, KT200B - Little Beaver KT283 Bar, Pointer, KT200B - Little Beaver KT283 Bushing, Rear Wheel, 1-3/8 Bolt, Hex, 3/8 Bushing, Rear Wheel, 1-3/8 Bolt, Hex, 1/4 Bolt, Hex, 5/16 Nut, Hex NC, 5/16 Nut, Hex, 3/8 Nut, Hex, 1/2 Cotter Key, 1/8 Flat Washer, 3/4 Nut, Hex, 3/8
Self Tapping Screw, #8 x 1/2 - Little Beaver KT054

Self Tapping Screw, #8 x 1/2 - Little Beaver KT054 (KT054)


$0.61 each

Back to top
1
Push Handle Assembly for KT200B, KT1200B, & KT2400B (w/ Grips) - Little Beaver KT286

Push Handle Assembly for KT200B, KT1200B, & KT2400B (w/ Grips) - Little Beaver KT286 (KT286)


$88.59 each

Back to top
2
Rubber Handle Grips, 1/2" ID - Little Beaver KT010

Rubber Handle Grips, 1/2" ID - Little Beaver KT010 (KT010)


$3.24 each

Back to top
3
Crank Assembly, KT200B (w/ Grip) - Little Beaver KT291

Crank Assembly, KT200B (w/ Grip) - Little Beaver KT291 (KT291)


$51.89 each

Back to top
5
Actuator, 12" Complete for Model KT200B - Little Beaver KT007

Actuator, 12" Complete for Model KT200B - Little Beaver KT007 (KT007)


$1,032.75 each

Back to top
6
U-Bolt, Actuator, 3/8" NC - Little Beaver KT009

U-Bolt, Actuator, 3/8" NC - Little Beaver KT009 (KT009)


$5.37 each

Back to top
7
Main Frame, KT200B - Little Beaver KT235

Main Frame, KT200B - Little Beaver KT235 (KT235)


$683.44 each

Back to top
9
10" Diameter Wheel, 3/4" Bore with Tube for Models KT100 and KT200B - Little Beaver 30258

10" Diameter Wheel, 3/4" Bore with Tube for Models KT100 and KT200B - Little Beaver 30258 (30258)


$57.71 each

Back to top
10
Nut, Hex NC, 3/4" Nylon Insert Lock - Little Beaver 9096

Nut, Hex NC, 3/4" Nylon Insert Lock - Little Beaver 9096 (9096)


$3.54 each

Back to top
11
Bolt, Hex, 3/4 x 6-1/2, NC Gr. 5 - Little Beaver KT041

Bolt, Hex, 3/4 x 6-1/2, NC Gr. 5 - Little Beaver KT041 (KT041)


$12.05 each

Back to top
12
Skirt, Front for KT200B - Little Beaver KT234

Skirt, Front for KT200B - Little Beaver KT234 (KT234)


$16.40 each

Back to top
13
Skirt, Side 24" W, for KT200B - Little Beaver KT232

Skirt, Side 24" W, for KT200B - Little Beaver KT232 (KT232)


$62.78 each

Back to top
14
Weldment, Skirt Frame, 24" W for KT200B - Little Beaver KT212

Weldment, Skirt Frame, 24" W for KT200B - Little Beaver KT212 (KT212)


$92.14 each

Back to top
15
Carriage Bolt 1/4" x 3/4" - Little Beaver KT021

Carriage Bolt 1/4" x 3/4" - Little Beaver KT021 (KT021)


$0.37 each

Back to top
16
Nut, Hex NC, 1/4" Nylon Insert Lock - Little Beaver 30204

Nut, Hex NC, 1/4" Nylon Insert Lock - Little Beaver 30204 (30204)


$0.41 each

Back to top
19
Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP

Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP (9026-KEP)


$0.26 each

Back to top
20
Swivel, Rear - Little Beaver KT250

Swivel, Rear - Little Beaver KT250 (KT250)


$92.14 each

Back to top
23
Roll Pin, 3/16" x 1" - Little Beaver KT039

Roll Pin, 3/16" x 1" - Little Beaver KT039 (KT039)


$1.27 each

Back to top
24
Lock Pin - Little Beaver KT265

Lock Pin - Little Beaver KT265 (KT265)


$14.68 each

Back to top
25
Roll Pin, 1/4" x 1-1/2" - Little Beaver KT040

Roll Pin, 1/4" x 1-1/2" - Little Beaver KT040 (KT040)


$1.42 each

Back to top
26
Angle, Actuator Mounting, R.H. (Vertical) - Little Beaver KT278

Angle, Actuator Mounting, R.H. (Vertical) - Little Beaver KT278 (KT278)


$10.63 each

Back to top
27
Angle, Actuator Mounting, L.H. (Vertical) - Little Beaver KT279

Angle, Actuator Mounting, L.H. (Vertical) - Little Beaver KT279 (KT279)


$10.63 each

Back to top
29
Bar, Pointer, KT200B - Little Beaver KT283

Bar, Pointer, KT200B - Little Beaver KT283 (KT283)


$17.21 each

Back to top
30
Bushing, Rear Wheel, 1-3/8" long - Little Beaver KT285

Bushing, Rear Wheel, 1-3/8" long - Little Beaver KT285 (KT285)


$2.58 each

Back to top
31
Bolt, Hex, 3/8" x 2-1/4" NC Gr. 5 - Little Beaver KT022

Bolt, Hex, 3/8" x 2-1/4" NC Gr. 5 - Little Beaver KT022 (KT022)


$1.87 each

Back to top
32
Bolt, Hex, 1/4" x 1-1/4" NC Gr. 5 - Little Beaver 4018-1H

Bolt, Hex, 1/4" x 1-1/4" NC Gr. 5 - Little Beaver 4018-1H (4018-1H)


$0.56 each

Back to top
33
Bolt, Hex, 5/16" x 1" NC Gr. 5 - Little Beaver 9024-1

Bolt, Hex, 5/16" x 1" NC Gr. 5 - Little Beaver 9024-1 (9024-1)


$0.49 each

Back to top
34
Nut, Hex NC, 5/16" Nylon Insert Lock - Little Beaver 30318

Nut, Hex NC, 5/16" Nylon Insert Lock - Little Beaver 30318 (30318)


$0.47 each

Back to top
35
Nut, Hex, 3/8" NC, Nylon Lock - Little Beaver 30154

Nut, Hex, 3/8" NC, Nylon Lock - Little Beaver 30154 (30154)


$0.71 each

Back to top
36
Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158

Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158 (30158)


$1.11 each

Back to top
37
Cotter Key, 1/8" x 1" - Little Beaver 30163

Cotter Key, 1/8" x 1" - Little Beaver 30163 (30163)


$0.27 each

Back to top
38
Flat Washer, 3/4", SAE - Little Beaver 30164

Flat Washer, 3/4", SAE - Little Beaver 30164 (30164)


$1.16 each

Back to top
