Anchor Handle

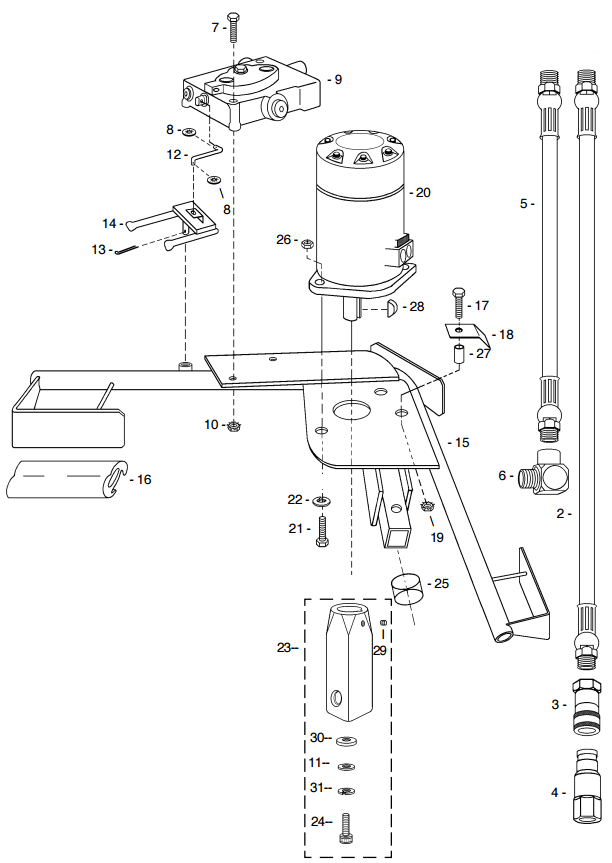

Below is a parts diagram for the anchor handle for Little Beaver hydraulic earth drills, followed by links to every available OEM replacement part. All of our replacement parts are official Little Beaver parts.

Part Diagram Hose, Valve to Power/Valve to Return for METRO Valve - Little Beaver 30102-A Little Beaver Quick Disconnect, Female #4050-3P - 30250 Little Beaver Quick Disconnect, Male #4010-3P - 30251 Hose, Valve to Power/Valve to Return for METRO Valve - Little Beaver 30102-A 90 Degree Street Elbow Adapter 5502-8-6 - Little Beaver 30287 Cap Screw 1/4 Pushnut Locking Washer - Little Beaver 30188 Pushnut Locking Washer - Little Beaver 30188 Metro Valve #D10M2 with Relief at 2700 PSI - Little Beaver 30275 Nut, KEP NC, 1/4 Nut, KEP NC, 1/4 Throttle Linkage, 3/16 Cotter Key 3/32 Throttle Lever - Little Beaver 30180-A Anchor Handle ONLY, Plate for 2-Bolt Flange - Little Beaver 30276-A Leg Pad - Little Beaver 9034 Bolt, Hex NC, 5/16 Hose Clamp - Little Beaver 30183 Nut, KEP NC, 5/16 Motor, Char-Lynn #101-1040, 60 rpm, 24 cubic inch 2-Bolt Flange - Little Beaver 30278 Adaptor, with Hardware, Keyed Shaft to Auger Adapter with Button - Little Beaver 30272 Socket Head Screw, NC, 1/4 Button Shield - Little Beaver 9058-1 Nut, Hex, 1/2 Hose Clamp Spacer 5/16 Little Beaver Replacement Woodruff Key (1/4 Screw, Set, Socket Head, 1/4 Washer, Williams, 3/8 Washer, Split Lock, 1/4
Standard Flat Washer, 1/4" - Little Beaver 10304

Standard Flat Washer, 1/4" - Little Beaver 10304 (10304)


$0.24 each

Back to top
Little Beaver Valve to Motor Hose, 17-1/2" for Anchor and 1-Man Handles - 30115-A

Little Beaver Valve to Motor Hose, 17-1/2" for Anchor and 1-Man Handles - 30115-A (30115-A)


$43.84 each

Back to top
3
Little Beaver Quick Disconnect, Female #4050-3P - 30250

Little Beaver Quick Disconnect, Female #4050-3P - 30250 (30250)


$54.93 each

Back to top
4
Little Beaver Quick Disconnect, Male #4010-3P - 30251

Little Beaver Quick Disconnect, Male #4010-3P - 30251 (30251)


$26.53 each

Back to top
5
Hose, Valve to Power/Valve to Return for METRO Valve - Little Beaver 30102-A

Hose, Valve to Power/Valve to Return for METRO Valve - Little Beaver 30102-A (30102-A)


$50.32 each

Back to top
6
90 Degree Street Elbow Adapter 5502-8-6 - Little Beaver 30287

90 Degree Street Elbow Adapter 5502-8-6 - Little Beaver 30287 (30287)


$15.39 each

Back to top
7
Cap Screw 1/4" x 2" Plated GR 5 - Little Beaver 5076

Cap Screw 1/4" x 2" Plated GR 5 - Little Beaver 5076 (5076)


$0.96 each

Back to top
8
Pushnut Locking Washer - Little Beaver 30188

Pushnut Locking Washer - Little Beaver 30188 (30188)


$0.37 each

Back to top
9
Metro Valve #D10M2 with Relief at 2700 PSI - Little Beaver 30275

Metro Valve #D10M2 with Relief at 2700 PSI - Little Beaver 30275 (30275)


$335.64 each

Back to top
11
Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP

Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP (9026-KEP)


$0.26 each

Back to top
12
Throttle Linkage, 3/16" - Little Beaver 30178-A

Throttle Linkage, 3/16" - Little Beaver 30178-A (30178-A)


$9.67 each

Back to top
13
Cotter Key 3/32" x 5/8" - Little Beaver 30179

Cotter Key 3/32" x 5/8" - Little Beaver 30179 (30179)


$0.27 each

Back to top
14
Throttle Lever - Little Beaver 30180-A

Throttle Lever - Little Beaver 30180-A (30180-A)


$30.27 each

Back to top
15
Anchor Handle ONLY, Plate for 2-Bolt Flange - Little Beaver 30276-A

Anchor Handle ONLY, Plate for 2-Bolt Flange - Little Beaver 30276-A (30276-A)


$247.81 each

Back to top
16
Leg Pad - Little Beaver 9034

Leg Pad - Little Beaver 9034 (9034)


$18.83 each

Back to top
17
Bolt, Hex NC, 5/16" x 2" Plated GR5 - Little Beaver 3010-9

Bolt, Hex NC, 5/16" x 2" Plated GR5 - Little Beaver 3010-9 (3010-9)


$0.66 each

Back to top
18
Hose Clamp - Little Beaver 30183

Hose Clamp - Little Beaver 30183 (30183)


$10.33 each

Back to top
19
Nut, KEP NC, 5/16" Plated (Nut with Lock Washer) - Little Beaver 3002-KEP

Nut, KEP NC, 5/16" Plated (Nut with Lock Washer) - Little Beaver 3002-KEP (3002-KEP)


$0.38 each

Back to top
20
Motor, Char-Lynn #101-1040, 60 rpm, 24 cubic inch 2-Bolt Flange - Little Beaver 30278

Motor, Char-Lynn #101-1040, 60 rpm, 24 cubic inch 2-Bolt Flange - Little Beaver 30278 (30278)


$744.69 each

Back to top
23
Adaptor, with Hardware, Keyed Shaft to Auger Adapter with Button - Little Beaver 30272

Adaptor, with Hardware, Keyed Shaft to Auger Adapter with Button - Little Beaver 30272 (30272)


$94.16 each

Back to top
24
Socket Head Screw, NC, 1/4" x 1", Nylok Plug - Little Beaver 30010

Socket Head Screw, NC, 1/4" x 1", Nylok Plug - Little Beaver 30010 (30010)


$4.91 each

Back to top
25
Button Shield - Little Beaver 9058-1

Button Shield - Little Beaver 9058-1 (9058-1)


$2.48 each

Back to top
26
Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158

Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158 (30158)


$1.11 each

Back to top
27
Hose Clamp Spacer 5/16" x 5/8" - Little Beaver 30198

Hose Clamp Spacer 5/16" x 5/8" - Little Beaver 30198 (30198)


$3.24 each

Back to top
28
Little Beaver Replacement Woodruff Key (1/4" x 1" #808) - Little Beaver 30182

Little Beaver Replacement Woodruff Key (1/4" x 1" #808) - Little Beaver 30182 (30182)


$3.59 each

Back to top
29
Little Beaver Screw, Set, Socket Head, 1/4 x 1/4 NC

Screw, Set, Socket Head, 1/4" x 1/4" NC - Little Beaver 9021 (9021)


$0.31 each

Back to top
30
Washer, Williams, 3/8" - Little Beaver 10520

Washer, Williams, 3/8" - Little Beaver 10520 (10520)


$1.92 each

Back to top
31
Washer, Split Lock, 1/4" - Little Beaver 9025

Washer, Split Lock, 1/4" - Little Beaver 9025 (9025)


$0.14 each

Back to top
