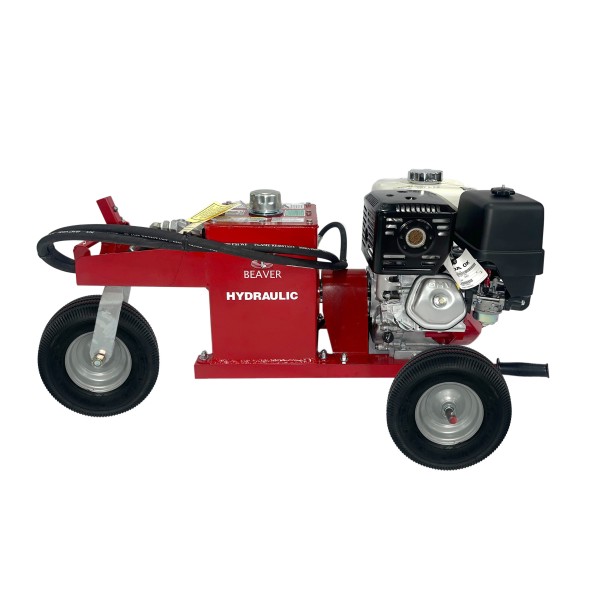

Little Beaver Hydraulic Earth Drill Power Source (No Handle) (11 HP Honda GX-340) - HYD-PS11H
The Little Beaver Hydraulic Earth Drill Power Source has a higher horsepower engine and, features reversibility, durability, and ensures safety for a productive drilling operation. The hydraulic design offers high torque ideal for drilling heavy clay soils, rocky soils, or frozen solids. This General Purpose Power Source powers earth drills and other hydraulic tools, including concrete saws, breakers, tampers, and chain saws. The 150 rmp motor generates enough torque to drive augers up to 9” in diameter given soil conditions. We offer various handles, augers, extensions, blades, and points to choose from that will get the job done quickly and efficiently. Click here to explore handle options and other hydraulic earth drill parts.
Handle, Augers, Extensions, Points, And Blades Sold Separately
Features:
- Can Drive Augers Up To 9" In Diameters
- Ideal For Heavy, Rocky, Or Frozen Solids
- Increases Productivity And Cuts Labor Costs
- Two Rear Handles For Moving Power Supply With Ease
- Swiveling Front Wheel Allows For Superior Movement
- Hydraulic Design Offers Durable Body And High Torque
- Reversible Drive Allows For Easy Lifting Out Of Holes
- Powers Earth Drills And Hydraulic Tools, Including Concrete Saws, Breakers, Tampers, And Chain Saws
Applications:
- Soil Sampling
- Horizontal Boring
- Industrial Fencing
- Foundation Pier Holes
- Groundwater Monitoring
- Gardening Or Landscaping
- Drilling Foundation For Pole Barns
- Mobile Home and Light Utility Anchoring
Engine Specifications:
- Brand/Model: Honda OHV
- Horsepower: 11HP
- Gasoline Tank Capacity: 1 Gallon
- Standard Oil Alert System
- Starter: Recoil
Hydraulic Specifications:
- Standard Forward/Reverse Features
- Maximum Auger Speed: 235 rpm
- Maximum Auger Torque: Standard 225/ Optional 140
- Maximum Flow: 6 GPM
- Maximum Pressure: 2700 PSI
- Reservoir Capacity: 5 Gallons
- Return Filter: 10 Micron
- Standard Inlet Suction Strainer
- Standard Sight Level Gauge
*Note: Power Source Only. For A Fully Functioning Hydraulic Earth Drill, Add On Handle, Augers, Extensions, Points, And/Or Blades - Sold Separately.
Little Beaver Hydraulic Earth Drill Operators Manual
Little Beaver Hydraulic Earth Drill Specification Sheet
|
|
A - 11 HP engine (B&S Vanguard or Honda) B - Sight level gauge C - Front handle D - Torque tube connection E - Swiveling front wheel F - Quick-connect couplers G - 10 micron return filter H - 5-gallon hydraulic reservoir I - Pneumatic wheels J - Rear handles (2) |
Specifications
| HYD-PS11H | PS-20HA | PS-24H | PS-19D | PS-19YD | |
| Engine | |||||
| Brand / Model | Honda GX340 | Honda GX630 | Honda GX660 | Kohler KD425-2 | Yanmar 3TNM68 |
| Power @ 3600 rpm | 10.7 HP Net | 20.8 HP Net | 21.5 HP Net | 18.8 HP Max. | 18.9 HP Net |
| Fuel Tank Capacity | 1.6 US gallons | 3.85 US gallons | 3.85 US gallons | 3.85 US gallons | 3.85 US gallons |
| Oil Alert System | Standard | Standard | Standard | N/A | N/A |
| Starting | Recoil | Electric | Electric | Electric | Electric |
| Hydraulics | |||||
| Forward / Reverse | Standard | Standard | Standard | Standard | Standard |
| Auger Speed (rpm) | 60 to 235 | 100 to 240 | 120 to 285 | 100 to 240 | 100 to 240 |
| Auger Torque (ft*lbs) | 380 to 170 | 690 to 260 | 690 to 260 | 690 to 260 | 690 to 260 |
| Maximum Flow (gpm) | 6 | 10 | 12 | 10 | 10 |
| Hydraulic Pressure (psi) | 2700 | 1500 to 3000 | 1500 to 3000 | 1500 to 3000 | 1500 to 3000 |
| Reservoir Capacity | 5 US gallons | 2.7 US gallons | 2.7 US gallons | 2.7 US gallons | 2.7 US gallons |
| Oil Cooler w/ Fan | N/A | Standard | Standard | Standard | Standard |
| Return Filter | 10 micron | 10 micron | 10 micron | 10 micron | 10 micron |
| Inlet Suction Strainer | 100 US mesh | 100 US mesh | 100 US mesh | 100 US mesh | 100 US mesh |
| Oil Level Indicator | Sight Gauge | Dipstick | Dipstick | Dipstick | Dipstick |
| Size w/ Wheel Kit | |||||
| Length | 47 | 54 | 54 | 54 | 63 |
| Width | 24 | 30 | 30 | 30 | 30 |
| Height | 24 | 30 | 30 | 30 | 37 |
| Dry Weight | 184 | 310 | 360 | ||
| Size w/o Wheel Kit | |||||
| Length | N/A | 40 | 40 | 40 | 49 |
| Width | N/A | 25 | 25 | 25 | 25 |
| Height | N/A | 25 | 25 | 25 | 25 |
| Dry Weight | N/A | 275 | 325 | ||
| One-Man Handle | HYD-1MH125 | HYD-1MH150 | HYD-1MH220 | HYD-AH60 | ||||
| Two-Man Handle | HYD-2MH125 | HYD-2MH150 | HYD-2MH220 | HYD-2MH60 | ||||
| Maximum: | Speed (rpm) | Torque (ft*lbs) | Speed (rpm) | Torque (ft*lbs) | Speed (rpm) | Torque (ft*lbs) | Speed (rpm) | Torque (ft*lbs) |
| HYD-PS11H | 125 | 295 | 150 | 300 | 235 | 170 | 60 | 380 |
| One-Man Handle | HDL-110 | HDL-112 | ||||||
| Two-Man Handle | HDL-210 | HDL-212 | HDL-214 | HDL-224 | ||||
| Maximum: | Speed (rpm) | Torque (ft*lbs) | Speed (rpm) | Torque (ft*lbs) | Speed (rpm) | Torque (ft*lbs) | Speed (rpm) | Torque (ft*lbs) |
| PS-24H | 285 | 260 | 250 | 295 | 200 | 325 | 105 | 380 |
| PS-19D | 285 | 260 | 205 | 295 | 165 | 325 | 105 | 380 |
| PS-19YD | 285 | 260 | 205 | 295 | 165 | 325 | 105 | 380 |
| Two-Man Handle | HDL-3210 | HDL-3212 | HDL-3214 | HDL-3224 | ||||
| Maximum: | Speed (rpm) | Torque (ft*lbs) | Speed (rpm) | Torque (ft*lbs) | Speed (rpm) | Torque (ft*lbs) | Speed (rpm) | Torque (ft*lbs) |
| PS-24H | 285 | 335 | 240 | 400 | 190 | 520 | 120 | 690 |
| PS-19D | 240 | 335 | 200 | 400 | 160 | 520 | 100 | 690 |
| PS-19YD | 240 | 335 | 200 | 400 | 160 | 520 | 100 | 690 |
| SKU | HYD-PS11H |
|---|---|
| Engine Brand | Honda |
| Product Type | Earth Drill Power Source |
| Handle | No Handle (Power Source Only) |
| Manufacturer | Little Beaver Inc. |
