MDL-5B Earth Drill (Vanguard 12V332 OHV Engine) Handle, Torque Tube, & Wires

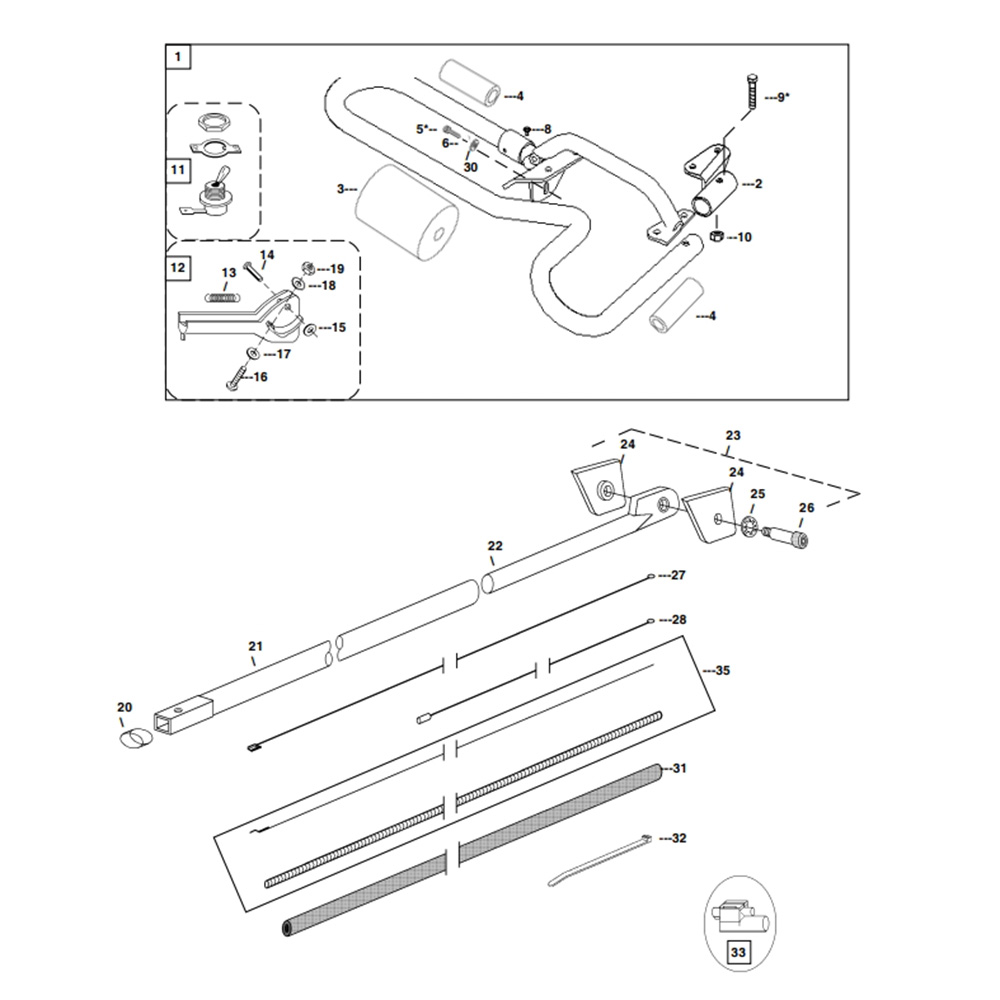

Below is a parts diagram for the Handle, Torque Tube, & Wires used in the Little Beaver MDL-5B Earth Drill, followed by links to every OEM replacement part available.

Part Diagram Handle Assembly, Loop with Switch and Throttle Lever - Little Beaver 10428-A Clamp Bushing, Loop Handle (Right Side) - Little Beaver 10429 Leg Pad, 3 Handle Grip - Little Beaver 10440 Socket Head Screw, 5/16 Lock Washer, 5/16 Machine Screw, 10-32 x 1/4 Bolt, Hex NC, 5/16 Nut, Hex NC, 5/16 Toggle Kill Switch Assembly Handle (Includes Nut and On-Off) - Little Beaver 10470 Throttle Lever Kit - Little Beaver 4031-1 Handle Kit Spring, Return, Throttle Lever 5/16 OD x 29/32 Coil Length - Little Beaver 4041-2 Little Beaver Rivet - Steel Plated - 3/16 X 1 - 7/8 X 3/8 Flat Washer, #10 Zinc Plated - Little Beaver 4033-1 Machine Screw, 10-32 x 5/8 Round Plated - Little Beaver 4034-A Flat Washer, 1/4 Standard SAE - Little Beaver 4034-1 Lock Washer, #10 External Star Plated - Little Beaver 4034-2 Nut, Hex, 10-32 Plated - Little Beaver 4034-3 Button Shield - Little Beaver 9058-1 Little Beaver Female Torque Tube, 69 Male Torque Arm - Little Beaver 10350 Bushing Repair Kit - Little Beaver 10360-R Torque Arm Bushing - Little Beaver 10360 Internal Star Washer, Lock, 5/8 Shoulder Bolt, 5/8 Short Kill Switch Wire, B&S 5 Std & 8 IP - Little Beaver 3007-8 Washer, Williams, 3/8 Wire Loom, 103 Wire Splicer - Little Beaver 9090-W Throttle Cable Assembly 116 Plastic Tie - Little Beaver 3007-5 Flat Washer, 5/16
