Heavy Duty Clutch

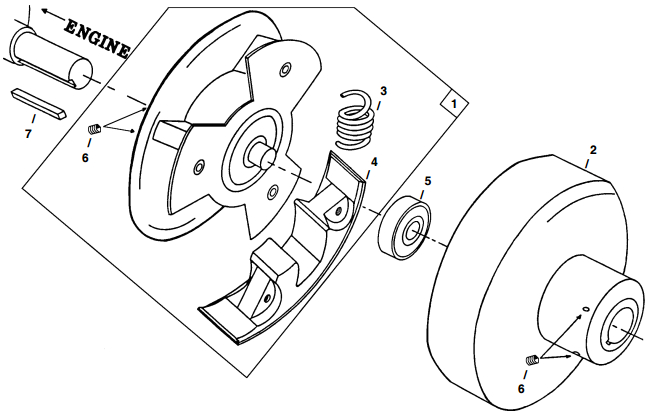

At Little Beaver Store it's incredibly easy to find exactly the right replacement part you need to get up and running again. Below is a diagram of the heavy duty clutch used in Little Beaver mechanical earth drills, followed by links to all the available replacement parts.

In the diagram below, select the number of your desired replacement part and you will be taken to the corresponding page. Alternatively, you can select from the list below the diagram and be taken to the corresponding product page.
Part Diagram Rotor Assembly, Model 5, 3/4 Clutch Drum with Pilot Bearing for Fiber Lined Shoe Clutch - Little Beaver 4179-F Clutch Spring, Models 5 and 7, NORAM Purple - Little Beaver 4382 Rotor Assembly, Model 7/8 1 Fiber Lined Clutch Shoe - Little Beaver 4383-F Pilot Bearing - Little Beaver 4021-2F Knurled Cup Point Set Screw (5/16-24 x 5/16) - Little Beaver 4320 Knurled Cup Point Set Screw (5/16-24 x 5/16) - Little Beaver 4320 Key, Engine Shaft (1/4 x 1/4 x 1-1/8) - Little Beaver 4081 Key, Engine Shaft (1/4 x 1/4 x 1-1/8) - Little Beaver 4081
