Belt Drive Assembly

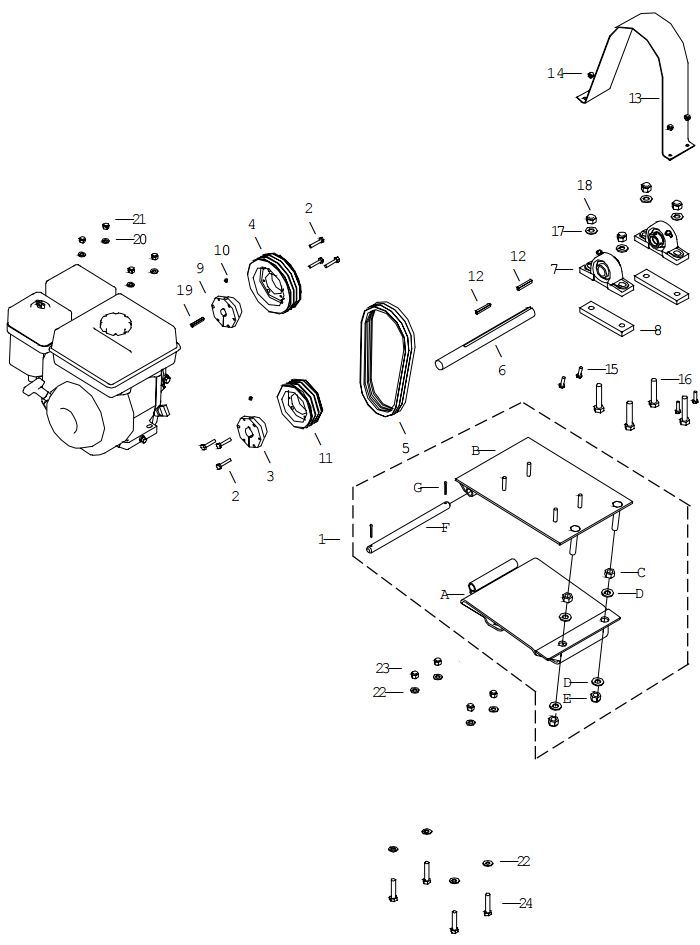

Below is a parts diagram for the belt drive assembly used in the Little Beaver KT2400B Kwik-Trench Earth Saw, followed by links to every OEM replacement part available.

Part Diagram Top Hat Assembly - Little Beaver KT2420 Base, Top Hat, Hinged for KT2400B - Little Beaver KT2426 Plate, Upper, Top Hat for KT2400B - Little Beaver KT2427 Nut, Hex NC, 1/2 Flat Washer, 1/2 Flat Washer, 1/2 Pin, Hinge - Little Beaver KT248 Pin, Hinge - Little Beaver KT248 Cotter Key, 1/8 Bolt, Hex, 1/4 Little Beaver Bushing, SH 1 for KT2400B - KT002-2 Pulley, 4 Bolt, Hex, 1/4 V-Belt, Rubber, 3V, Banded - Little Beaver KT4-3V300B Bar, PTO Shaft, 1 Bearing, 1 Little Beaver Bushing, SH 1 for KT2400B - KT002-2 Pulley, 5.0 Screw, Set, Socket Head, 1/4 Key, PTO Shaft, 1/4 sq x 1-3/4 Shroud, Pulley for KT1200B and KT2400B - Little Beaver KT1221 Nut, KEP NC, 1/4 Bolt, Hex NC, 1/4 Flat Washer, 1/2 Nut, Hex, 1/2 Key, Engine Shaft (1/4 x 1/4 x 1-1/8) - Little Beaver 4081 Flat Washer, 3/8 Nut, Hex, 3/8 Nut, Hex, 3/8 Flat Washer, 3/8 Flat Washer, 3/8 Bolt, Hex NC, 3/8
Bushing, SDS 1" Pulley w/ Bolts - Little Beaver KT002

Bushing, SDS 1" Pulley w/ Bolts - Little Beaver KT002 (KT002)


$41.11 each

Back to top
1a
Base, Top Hat, Hinged for KT2400B - Little Beaver KT2426

Base, Top Hat, Hinged for KT2400B - Little Beaver KT2426 (KT2426)


$160.23 each

Back to top
1b
Plate, Upper, Top Hat for KT2400B - Little Beaver KT2427

Plate, Upper, Top Hat for KT2400B - Little Beaver KT2427 (KT2427)


$109.60 each

Back to top
1c
Nut, Hex NC, 1/2" - Little Beaver 30151

Nut, Hex NC, 1/2" - Little Beaver 30151 (30151)


$0.71 each

Back to top
1f
Pin, Hinge - Little Beaver KT248

Pin, Hinge - Little Beaver KT248 (KT248)


$15.39 each

Back to top
1g
Cotter Key, 1/8" x 1" - Little Beaver 30163

Cotter Key, 1/8" x 1" - Little Beaver 30163 (30163)


$0.27 each

Back to top
1
Top Hat Assembly - Little Beaver KT2420

Top Hat Assembly - Little Beaver KT2420 (KT2420)


$294.13 each

Back to top
2
Bolt, Hex, 1/4" x 1-3/8" NC Gr. 8 - Little Beaver KT056

Bolt, Hex, 1/4" x 1-3/8" NC Gr. 8 - Little Beaver KT056 (KT056)


$2.84 each

Back to top
4
Pulley, 4" Diameter, 3-Belt - Little Beaver KT066

Pulley, 4" Diameter, 3-Belt - Little Beaver KT066 (KT066)


$118.21 each

Back to top
5
V-Belt, Rubber, 3V, Banded - Little Beaver KT4-3V300B

V-Belt, Rubber, 3V, Banded - Little Beaver KT4-3V300B (KT4-3V300B)


$123.53 each

Back to top
6
Bar, PTO Shaft, 1" OD x 15" for KT2400B - Little Beaver KT2421

Bar, PTO Shaft, 1" OD x 15" for KT2400B - Little Beaver KT2421 (KT2421)


$73.66 each

Back to top
7
Bearing, 1" Pillow Block - Little Beaver KTP205

Bearing, 1" Pillow Block - Little Beaver KTP205 (KTP205)


$49.61 each

Back to top
9
Little Beaver Bushing, SH 1 for KT2400B - KT002-2

Little Beaver Bushing, SH 1 for KT2400B - KT002-2 (KT002-2)


$57.21 each

Back to top
10
Little Beaver Screw, Set, Socket Head, 1/4 x 1/4 NC

Screw, Set, Socket Head, 1/4" x 1/4" NC - Little Beaver 9021 (9021)


$0.31 each

Back to top
11
Pulley, 5.0" Diameter, 3-Belt - Little Beaver KT065

Pulley, 5.0" Diameter, 3-Belt - Little Beaver KT065 (KT065)


$139.73 each

Back to top
12
Key, PTO Shaft, 1/4 sq x 1-3/4" - Little Beaver KT230

Key, PTO Shaft, 1/4 sq x 1-3/4" - Little Beaver KT230 (KT230)


$1.97 each

Back to top
13
Shroud, Pulley for KT1200B and KT2400B - Little Beaver KT1221

Shroud, Pulley for KT1200B and KT2400B - Little Beaver KT1221 (KT1221)


$52.65 each

Back to top
14
Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP

Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP (9026-KEP)


$0.26 each

Back to top
15
Bolt, Hex NC, 1/4" x 1" Plated GR 5 - Little Beaver 9024-BP

Bolt, Hex NC, 1/4" x 1" Plated GR 5 - Little Beaver 9024-BP (9024-BP)


$0.43 each

Back to top
17
Flat Washer, 1/2" Plated SAE - Little Beaver 30153

Flat Washer, 1/2" Plated SAE - Little Beaver 30153 (30153)


$0.47 each

Back to top
18
Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158

Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158 (30158)


$1.11 each

Back to top
19
Key, Engine Shaft (1/4 x 1/4 x 1-1/8) - Little Beaver 4081

Key, Engine Shaft (1/4 x 1/4 x 1-1/8) - Little Beaver 4081 (4081)


$1.06 each

Back to top
22
Flat Washer, 3/8" SAE and 5/16" Used with 5/16" Bolt and 3/8" Bolt - Little Beaver 3002-B

Flat Washer, 3/8" SAE and 5/16" Used with 5/16" Bolt and 3/8" Bolt - Little Beaver 3002-B (3002-B)


$0.31 each

Back to top
23
Nut, Hex, 3/8" NC, Nylon Lock - Little Beaver 30154

Nut, Hex, 3/8" NC, Nylon Lock - Little Beaver 30154 (30154)


$0.71 each

Back to top
24
Bolt, Hex NC, 3/8" x 1-1/2" Plated Gr. 5 - Little Beaver 30295

Bolt, Hex NC, 3/8" x 1-1/2" Plated Gr. 5 - Little Beaver 30295 (30295)


$1.27 each

Back to top
