Belt Drive Assembly

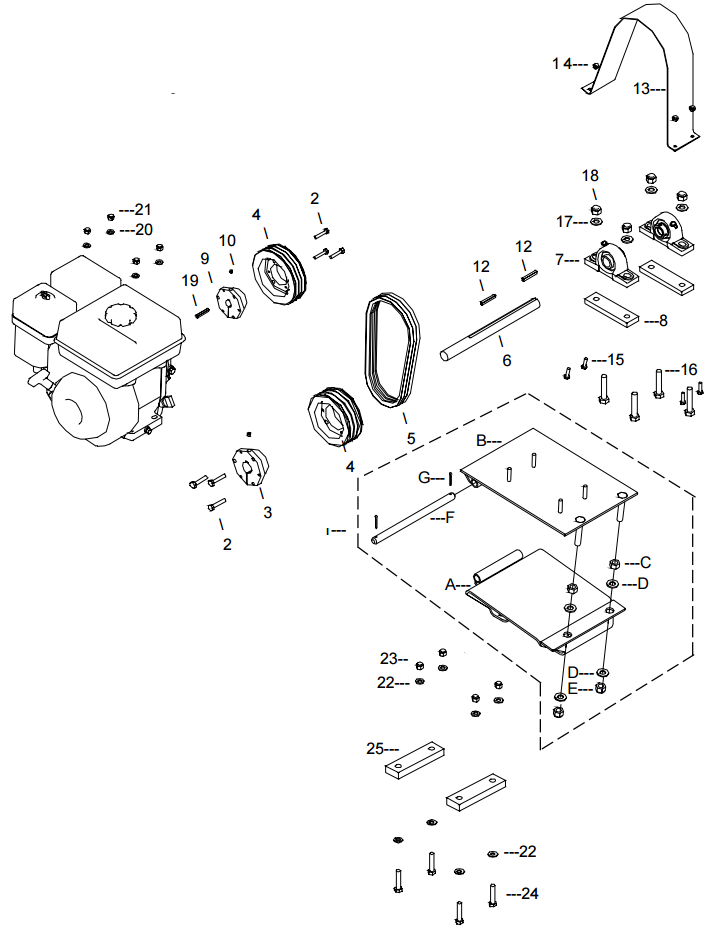

Below is a parts diagram for the belt drive assembly used in the Little Beaver KT1200B Kwik-Trench Earth Saw, followed by links to every OEM replacement part available.

Part Diagram Top Hat Assembly, for KT200B & KT1200B - Little Beaver KT290 Bolt, Hex, 1/4 Bushing, SDS 1 Pulley, 4.5 Base, Top Hat, Hinged for KT200B and KT1200B - Little Beaver KT242 Plate, Upper, Top Hat - Little Beaver KT249 Nut, Hex NC, 1/2 Flat Washer, 1/2 Flat Washer, 1/2 Nut, Hex, 1/2 Pin, Hinge - Little Beaver KT248 Cotter Key, 1/8 V-Belt, Rubber, 3V, Banded - Little Beaver KT4-3V300B Bar, PTO Shaft, 1 Bearing, 1 Bushing, SDS 3/4 Screw, Set, Socket Head, 1/4 Pulley, 4.5 Bolt, Hex, 1/4 Key, PTO Shaft, 1/4 sq x 1-3/4 Shroud, Pulley for KT1200B and KT2400B - Little Beaver KT1221 Nut, KEP NC, 1/4 Bolt, Hex NC, 1/4 Flat Washer, 1/2 Nut, Hex, 1/2 Key, Engine Shaft - Little Beaver 4080 Flat Washer, 5/16 Nut, Hex NC, 5/16 Flat Washer, 3/8 Flat Washer, 3/8 Nut, Hex, 3/8 Bolt, Hex, 3/8 Bar, Top Hat, 3/4
Pulley, 5.6" Diameter, 3-Belt - Little Beaver KT043

Pulley, 5.6" Diameter, 3-Belt - Little Beaver KT043 (KT043)


$100.74 each

Back to top
a
Base, Top Hat, Hinged for KT200B and KT1200B - Little Beaver KT242

Base, Top Hat, Hinged for KT200B and KT1200B - Little Beaver KT242 (KT242)


$160.23 each

Back to top
b
Plate, Upper, Top Hat - Little Beaver KT249

Plate, Upper, Top Hat - Little Beaver KT249 (KT249)


$122.51 each

Back to top
c
Nut, Hex NC, 1/2" - Little Beaver 30151

Nut, Hex NC, 1/2" - Little Beaver 30151 (30151)


$0.71 each

Back to top
f
Pin, Hinge - Little Beaver KT248

Pin, Hinge - Little Beaver KT248 (KT248)


$15.39 each

Back to top
g
Cotter Key, 1/8" x 1" - Little Beaver 30163

Cotter Key, 1/8" x 1" - Little Beaver 30163 (30163)


$0.27 each

Back to top
1
Top Hat Assembly, for KT200B & KT1200B - Little Beaver KT290

Top Hat Assembly, for KT200B & KT1200B - Little Beaver KT290 (KT290)


$296.16 each

Back to top
2
Bolt, Hex, 1/4" x 1-3/8" NC Gr. 8 - Little Beaver KT056

Bolt, Hex, 1/4" x 1-3/8" NC Gr. 8 - Little Beaver KT056 (KT056)


$2.84 each

Back to top
3
Bushing, SDS 1" Pulley w/ Bolts - Little Beaver KT002

Bushing, SDS 1" Pulley w/ Bolts - Little Beaver KT002 (KT002)


$41.11 each

Back to top
4
Pulley, 4.5" Diameter, 3-Belt - Little Beaver KT044

Pulley, 4.5" Diameter, 3-Belt - Little Beaver KT044 (KT044)


$100.74 each

Back to top
5
V-Belt, Rubber, 3V, Banded - Little Beaver KT4-3V300B

V-Belt, Rubber, 3V, Banded - Little Beaver KT4-3V300B (KT4-3V300B)


$123.53 each

Back to top
6
Bar, PTO Shaft, 1" OD x 13-1/2" long for KT1200B - Little Beaver KT1227

Bar, PTO Shaft, 1" OD x 13-1/2" long for KT1200B - Little Beaver KT1227 (KT1227)


$72.39 each

Back to top
7
Bearing, 1" Pillow Block - Little Beaver KTP205

Bearing, 1" Pillow Block - Little Beaver KTP205 (KTP205)


$49.61 each

Back to top
9
Bushing, SDS 3/4" with Cap Screws - Little Beaver KT001

Bushing, SDS 3/4" with Cap Screws - Little Beaver KT001 (KT001)


$55.43 each

Back to top
10
Little Beaver Screw, Set, Socket Head, 1/4 x 1/4 NC

Screw, Set, Socket Head, 1/4" x 1/4" NC - Little Beaver 9021 (9021)


$0.31 each

Back to top
12
Key, PTO Shaft, 1/4 sq x 1-3/4" - Little Beaver KT230

Key, PTO Shaft, 1/4 sq x 1-3/4" - Little Beaver KT230 (KT230)


$1.97 each

Back to top
13
Shroud, Pulley for KT1200B and KT2400B - Little Beaver KT1221

Shroud, Pulley for KT1200B and KT2400B - Little Beaver KT1221 (KT1221)


$52.65 each

Back to top
14
Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP

Nut, KEP NC, 1/4" Plated (Nut with Lock Washer) - Little Beaver 9026-KEP (9026-KEP)


$0.26 each

Back to top
15
Bolt, Hex NC, 1/4" x 1" Plated GR 5 - Little Beaver 9024-BP

Bolt, Hex NC, 1/4" x 1" Plated GR 5 - Little Beaver 9024-BP (9024-BP)


$0.43 each

Back to top
17
Flat Washer, 1/2" Plated SAE - Little Beaver 30153

Flat Washer, 1/2" Plated SAE - Little Beaver 30153 (30153)


$0.47 each

Back to top
18
Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158

Nut, Hex, 1/2" NC, Nylon Lock - Little Beaver 30158 (30158)


$1.11 each

Back to top
19
Key, Engine Shaft - Little Beaver 4080

Key, Engine Shaft - Little Beaver 4080 (4080)


$1.06 each

Back to top
20
Little Beaver Flat Washer, 5/16" SAE

Flat Washer, 5/16" SAE - Little Beaver 10305 (10305)


$0.24 each

Back to top
21
Nut, Hex NC, 5/16" Nylon Insert Lock - Little Beaver 30318

Nut, Hex NC, 5/16" Nylon Insert Lock - Little Beaver 30318 (30318)


$0.47 each

Back to top
22
Flat Washer, 3/8" SAE and 5/16" Used with 5/16" Bolt and 3/8" Bolt - Little Beaver 3002-B

Flat Washer, 3/8" SAE and 5/16" Used with 5/16" Bolt and 3/8" Bolt - Little Beaver 3002-B (3002-B)


$0.31 each

Back to top
23
Nut, Hex, 3/8" NC, Nylon Lock - Little Beaver 30154

Nut, Hex, 3/8" NC, Nylon Lock - Little Beaver 30154 (30154)


$0.71 each

Back to top
24
Bolt, Hex, 3/8" x 2-1/4" NC Gr. 5 - Little Beaver KT022

Bolt, Hex, 3/8" x 2-1/4" NC Gr. 5 - Little Beaver KT022 (KT022)


$1.87 each

Back to top
25
Bar, Top Hat, 3/4" x 1-1/2 x 5-1/2 - Little Beaver KT1266

Bar, Top Hat, 3/4" x 1-1/2 x 5-1/2 - Little Beaver KT1266 (KT1266)


$22.07 each

Back to top
